1 1/8 dia. x 1/8 inch thick Round Disc Magnets | DX22

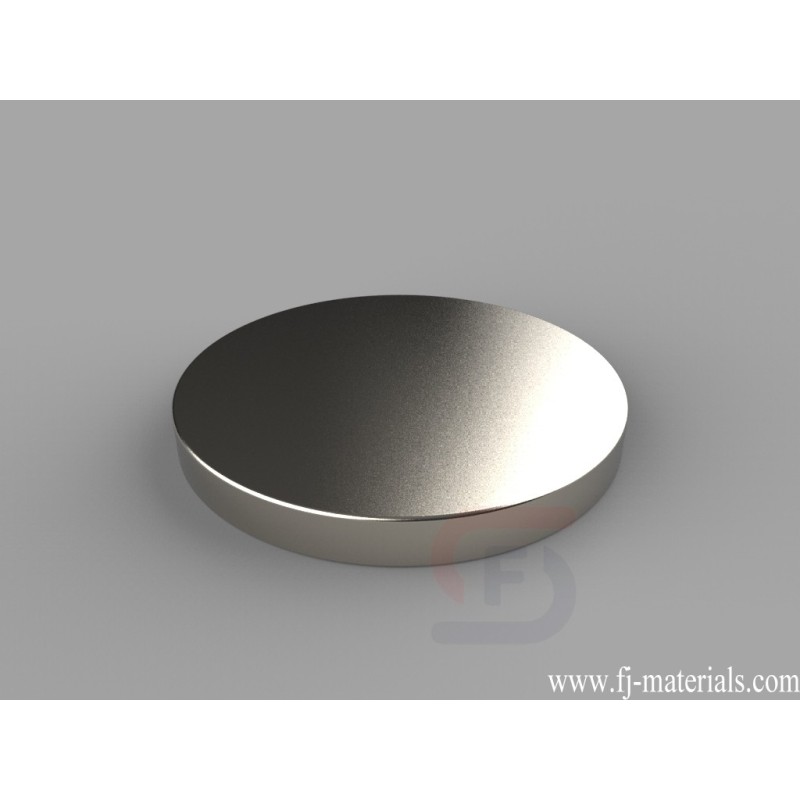

DX22 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/8" dia. x 1/8" thick, Axial magnetized. Pull force is approximately 14.53 lbs.
Yiwu Fenjiao E-commerce Firm supply DX22 Neodymium Disc Magnets with high quality at competitive price.
DX22 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/8" dia. x 1/8" thick, Axial magnetized. Pull force is approximately 14.53 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DX22
Data sheet
- Item Number
- DX22
- Material
- NdFeB
- Grade
- N42
- Size
- 1 1/8" dia. x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.539 oz. (15.3 g)
- Pull Force
- 14.53 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- A. 0.00-3.18mm
DX22 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/8" dia. x 1/8" thick, Axial magnetized. Pull force is approximately 14.53 lbs.
