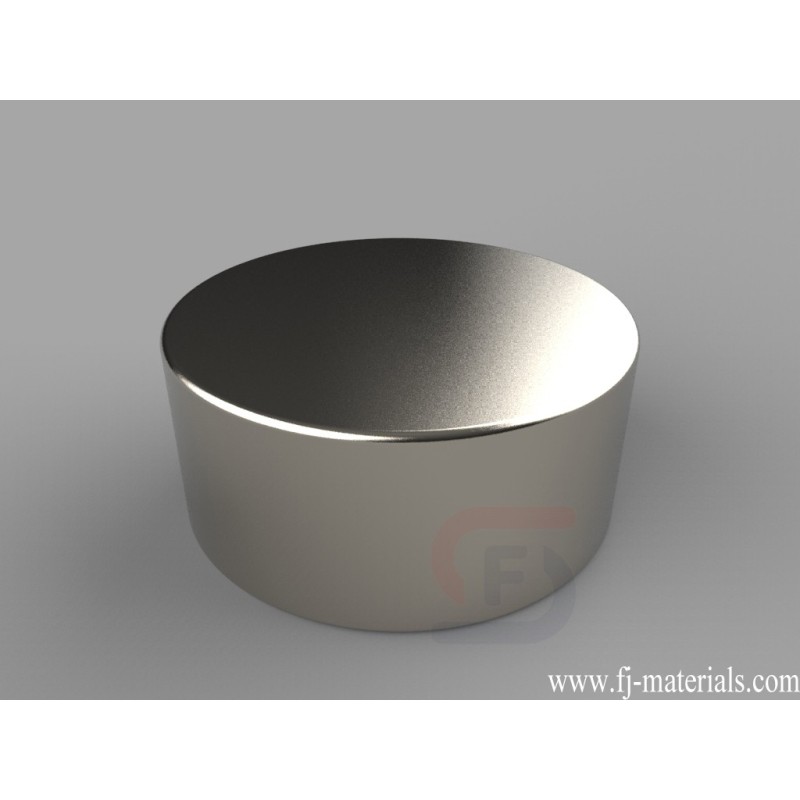

1 1/8 dia.x 1/2 inch thick Round Disc Magnets | DX28
DX28 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/8" dia.x 1/2" thick, Axial magnetized. Pull force is approximately 54.24 lbs.
Yiwu Fenjiao E-commerce Firm supply DX28 Neodymium Disc Magnets with high quality at competitive price.
DX28 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/8" dia.x 1/2" thick, Axial magnetized. Pull force is approximately 54.24 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DX28
Data sheet
- Item Number
- DX28
- Material
- NdFeB
- Grade
- N42
- Size
- 1 1/8" dia.x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 2.16 oz. (61.09 g)
- Pull Force
- 54.24 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- D. 9.53-12.7mm
DX28 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/8" dia.x 1/2" thick, Axial magnetized. Pull force is approximately 54.24 lbs.
