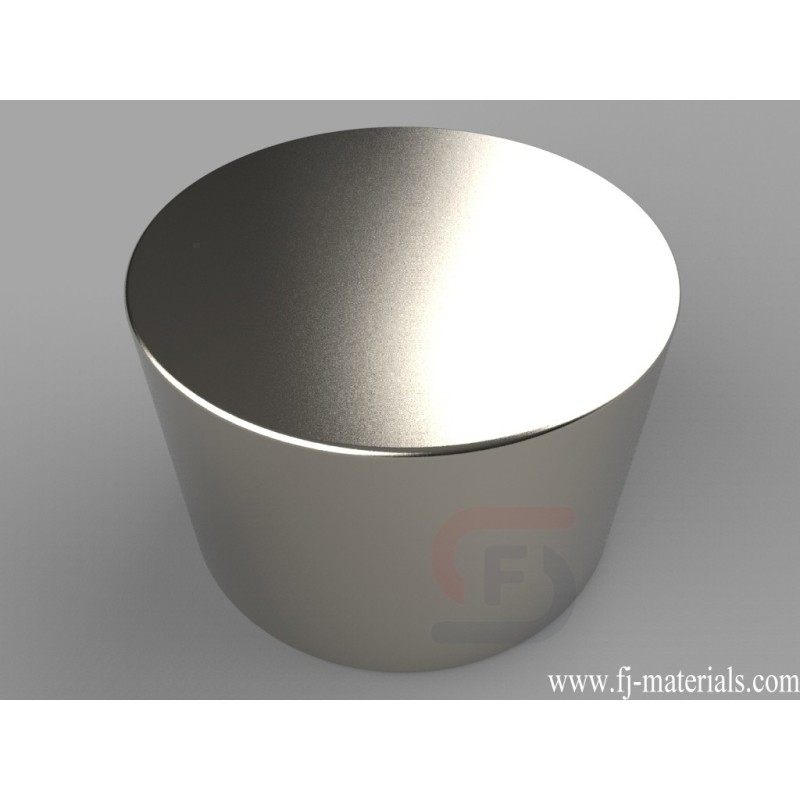

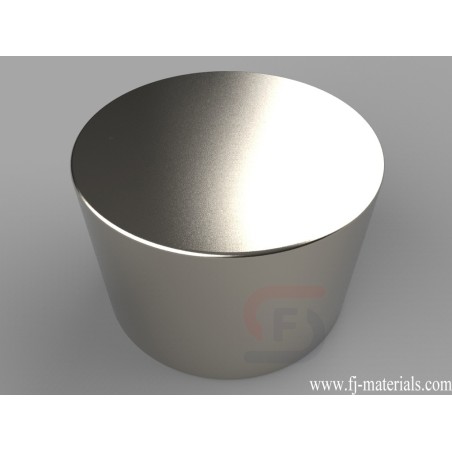

1 1/2 dia. x 1 inch thick Round Disc Magnets | DX8X0
DX8X0 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" dia. x 1" thick, Axial magnetized. Pull force is approximately 121.0 lbs.
Yiwu Fenjiao E-commerce Firm supply DX8X0 Neodymium Disc Magnets with high quality at competitive price.
DX8X0 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" dia. x 1" thick, Axial magnetized. Pull force is approximately 121.0 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DX8X0
Data sheet
- Item Number
- DX8X0
- Material
- NdFeB
- Grade
- N42
- Size
- 1 1/2" dia. x 1" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 7.66 oz. (217.2 g)
- Pull Force
- 121.0 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- F. 19.05-25.4mm
DX8X0 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" dia. x 1" thick, Axial magnetized. Pull force is approximately 121.0 lbs.
