1 3/4 dia.x 1/4 inch thick Round Disc Magnets | DXC4

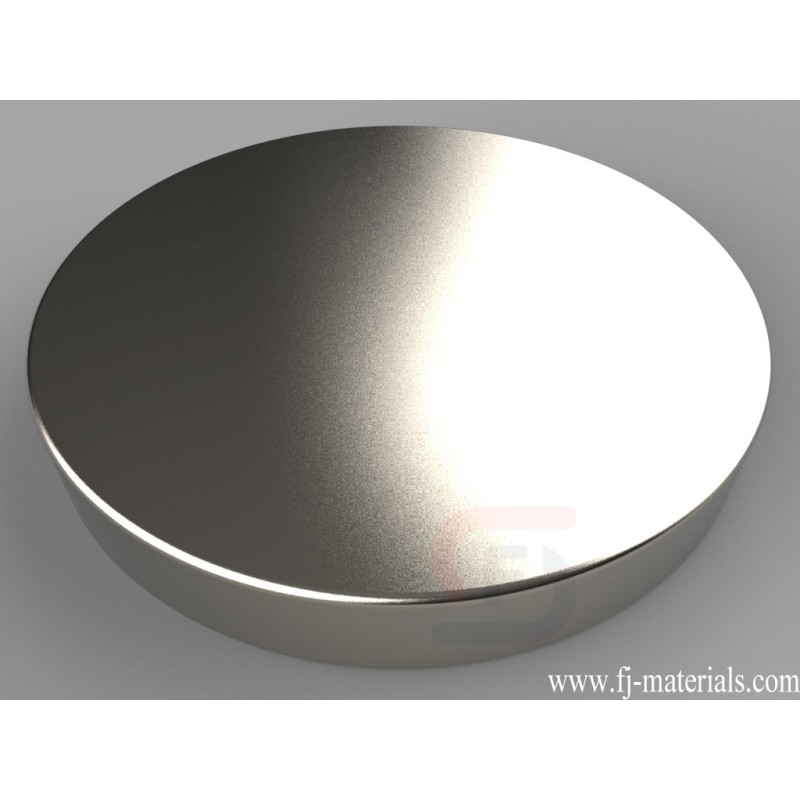

DXC4 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 3/4" dia.x 1/4" thick, Axial magnetized. Pull force is approximately 40.10 lbs.
Yiwu Fenjiao E-commerce Firm supply DXC4 Neodymium Disc Magnets with high quality at competitive price.
DXC4 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 3/4" dia.x 1/4" thick, Axial magnetized. Pull force is approximately 40.10 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DXC4
Data sheet
- Item Number
- DXC4
- Material
- NdFeB
- Grade
- N42
- Size
- 1 3/4" dia.x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 2.61 oz. (73.9 g)
- Pull Force
- 40.10 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- B. 3.18-6.35mm
DXC4 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 3/4" dia.x 1/4" thick, Axial magnetized. Pull force is approximately 40.10 lbs.
