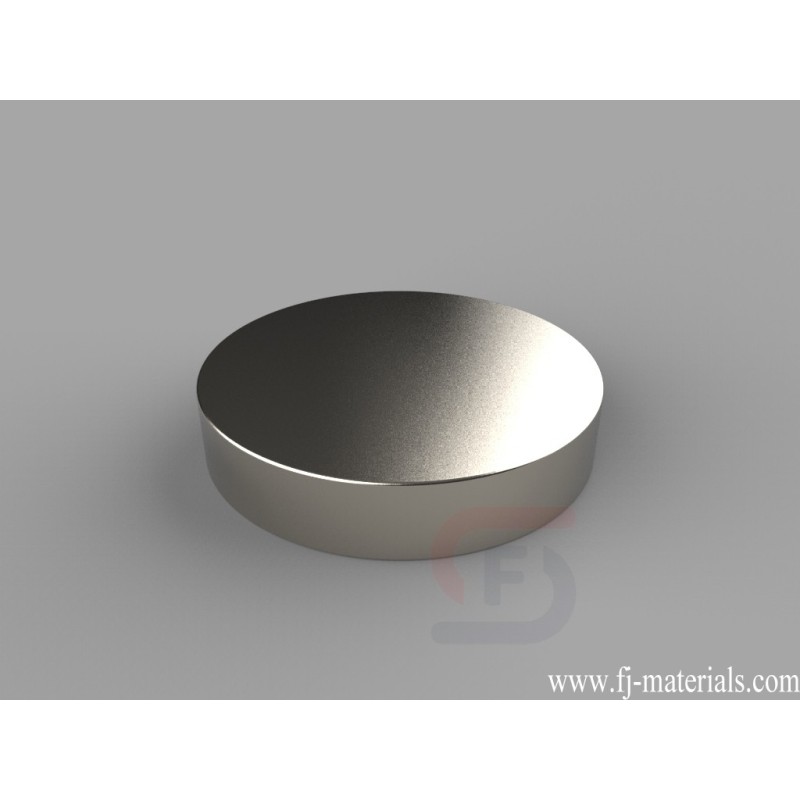

2 1/2 dia. x 1/2 inch thick Round Disc Magnets | DY88

DY88 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2 1/2" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 127.0 lbs.

Yiwu Fenjiao E-commerce Firm supply DY88 Neodymium Disc Magnets with high quality at competitive price.

DY88 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2 1/2" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 127.0 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DY88

Data sheet

Item Number
DY88
Material
NdFeB
Grade
N42
Size
2 1/2" dia. x 1/2" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
10.64 oz. (301.7 g)
Pull Force
127.0 lbs
Diameter
H. 50.8-254mm
Thickness
D. 9.53-12.7mm
