2 1/2 dia. x 1 inch thick Round Disc Magnets | DY8X0-N52

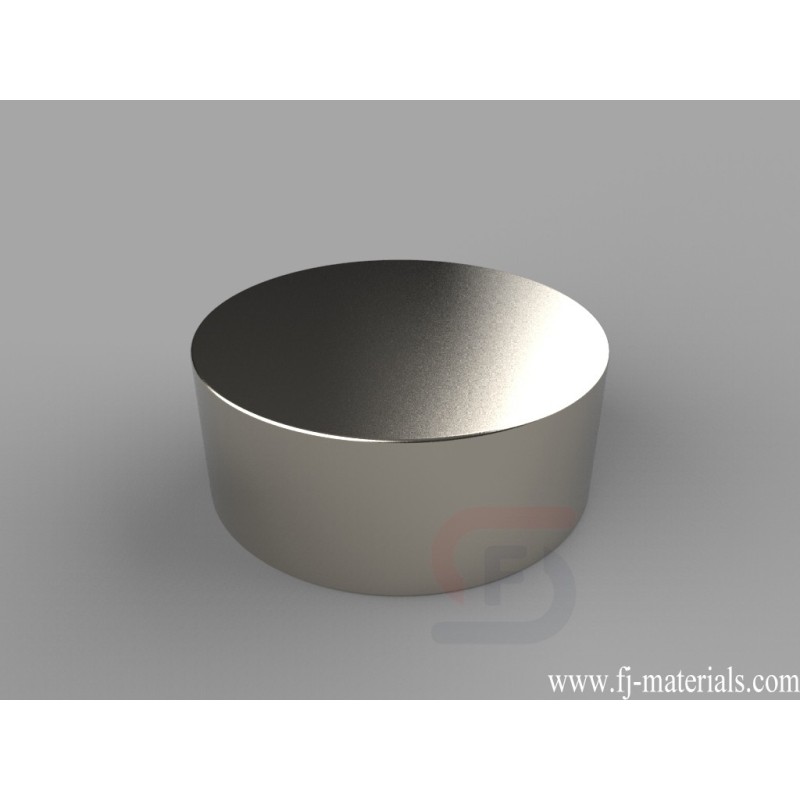

DY8X0-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 2 1/2" dia. x 1" thick, Axial magnetized. Pull force is approximately 376.4 lbs.

Yiwu Fenjiao E-commerce Firm supply DY8X0-N52 Neodymium Disc Magnets with high quality at competitive price.

DY8X0-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 2 1/2" dia. x 1" thick, Axial magnetized. Pull force is approximately 376.4 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DY8X0-N52

Data sheet

Item Number
DY8X0-N52
Material
NdFeB
Grade
N52
Size
2 1/2" dia. x 1" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
21.3 oz. (603.4 g)
Pull Force
376.4 lbs
Diameter
H. 50.8-254mm
Thickness
F. 19.05-25.4mm
