3 dia. x 1 inch thick Round Disc Magnets | DZ0X0

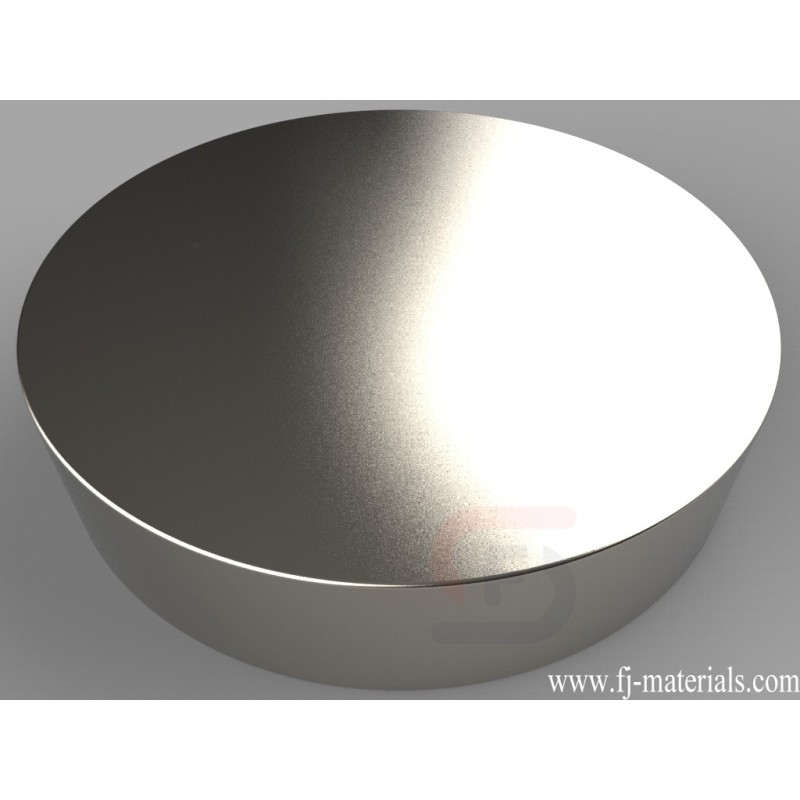

DZ0X0 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" dia. x 1" thick, Axial magnetized. Pull force is approximately 400.0 lbs.
Yiwu Fenjiao E-commerce Firm supply DZ0X0 Neodymium Disc Magnets with high quality at competitive price.
DZ0X0 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" dia. x 1" thick, Axial magnetized. Pull force is approximately 400.0 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DZ0X0
Data sheet
- Item Number
- DZ0X0
- Material
- NdFeB
- Grade
- N42
- Size
- 3" dia. x 1" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 30.6 oz. (869 g)
- Pull Force
- 400.0 lbs
- Diameter
- H. 50.8-254mm
- Thickness
- F. 19.05-25.4mm
DZ0X0 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" dia. x 1" thick, Axial magnetized. Pull force is approximately 400.0 lbs.
