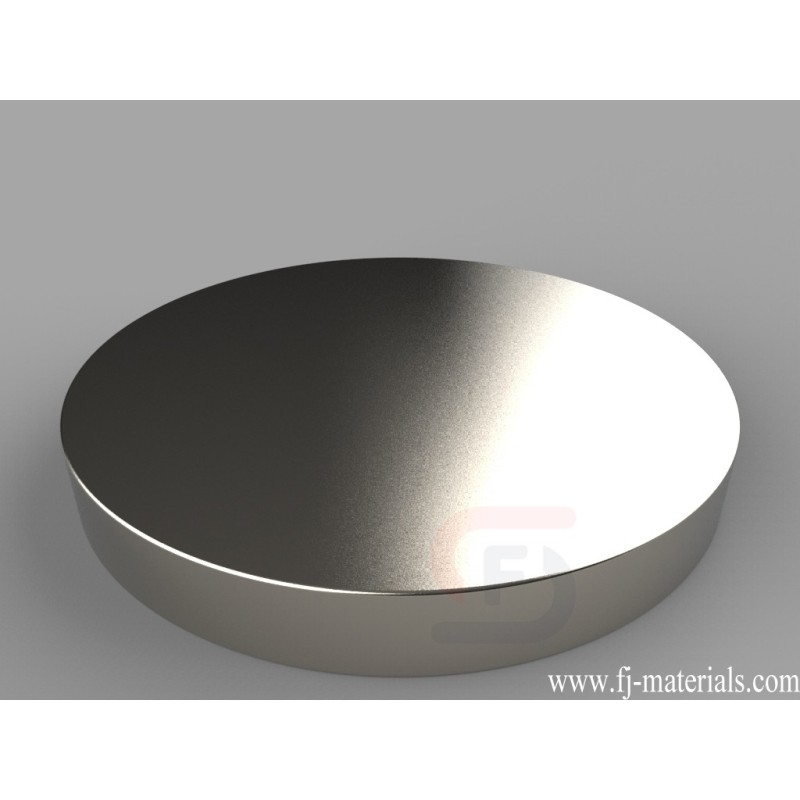

4 dia. x 1/2 inch thick Round Disc Magnets | DZX08-N52
DZX08-N52 Neodymium Magnets, 4" dia. x 1/2" thick is made of Grade N52 NdFeB, Nickel Plated. The dimension is 4" dia. x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 270.5 lbs.
DZX08-N52 Neodymium Magnets is made from high perfermance N52 NdFeB. The dimesion is 4" dia. x 1/2" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 270.5 lbs. Magnetization direction: Through Thickness
DZX08-N52 Neodymium Magnets, 4" dia. x 1/2" thick is made of Grade N52 NdFeB, Nickel Plated. The dimension is 4" dia. x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 270.5 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DZX08-N52
Data sheet
- Item Number
- DZX08-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 4" dia. x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 27.24 oz. (772.24 g)
- Pull Force
- 270.5 lbs
- Diameter
- H. 50.8-254mm
- Thickness
- D. 9.53-12.7mm
DZX08-N52 Neodymium Magnets, 4" dia. x 1/2" thick is made of Grade N52 NdFeB, Nickel Plated. The dimension is 4" dia. x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 270.5 lbs.
