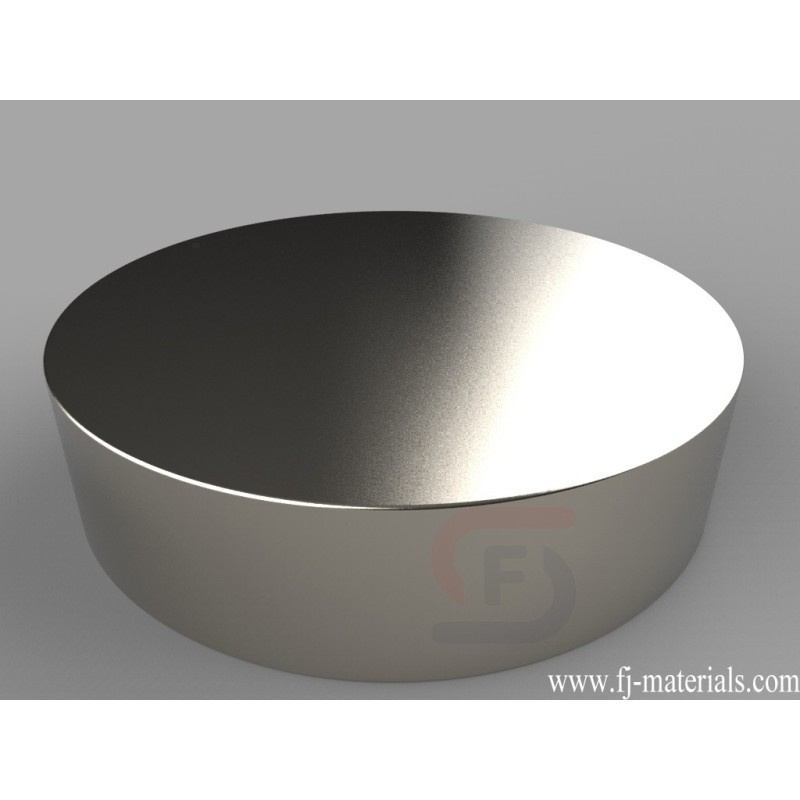

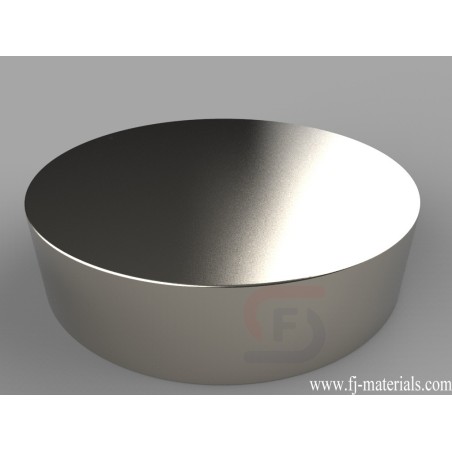

4 dia. x 1 inch thick Round Disc Magnets | DZX0X0-N52

DZX0X0-N52 Neodymium Magnets, 4" dia. x 1" thick is made of Grade N52 NdFeB, Nickel Plated. The dimension is 4" dia. x 1" thick, Thru Thickness magnetized. Pull force is approximately 717.8 lbs.

DZX0X0-N52 Neodymium Magnets is made from high perfermance N52 NdFeB. The dimesion is 4" dia. x 1" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 717.8 lbs. Magnetization direction: Through Thickness

DZX0X0-N52 Neodymium Magnets, 4" dia. x 1" thick is made of Grade N52 NdFeB, Nickel Plated. The dimension is 4" dia. x 1" thick, Thru Thickness magnetized. Pull force is approximately 717.8 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DZX0X0-N52

Data sheet

Item Number
DZX0X0-N52
Material
NdFeB
Grade
N52
Size
4" dia. x 1" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
54.49 oz. (1544.77 g)
Pull Force
717.8 lbs
Diameter
H. 50.8-254mm
Thickness
F. 19.05-25.4mm

Inquiry
