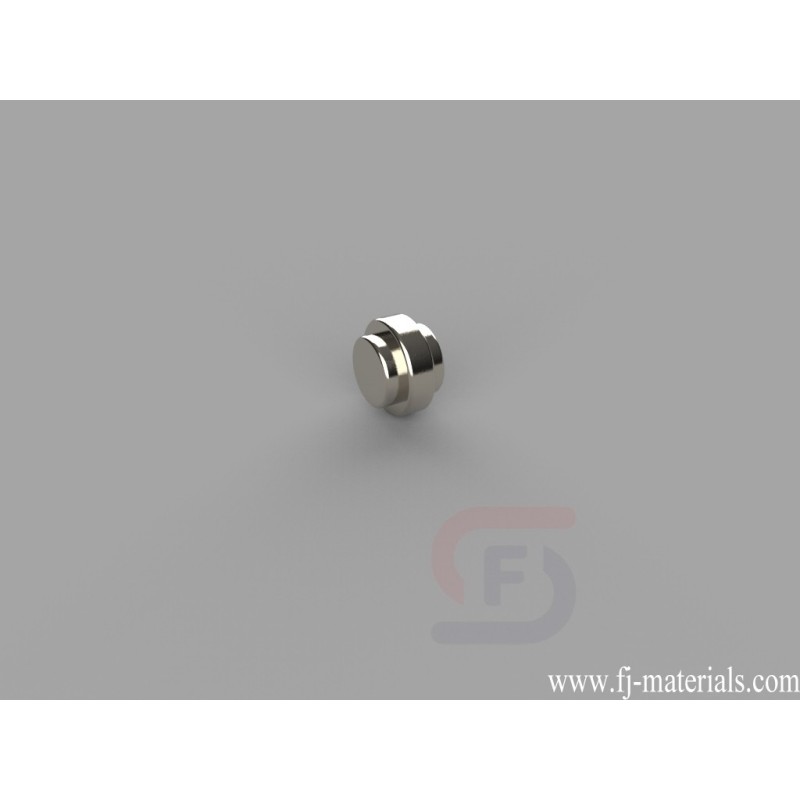

3/8 dia. x 1/4 inch thick with step OUT Round Disc Magnets | SD64-OUT

SD64-OUT Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 1/4" thick with step OUT, Axial magnetized. Pull force is approximately 7.80 lbs.

Yiwu Fenjiao E-commerce Firm supply SD64-OUT Neodymium Disc Magnets with high quality at competitive price.

SD64-OUT Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 1/4" thick with step OUT, Axial magnetized. Pull force is approximately 7.80 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

SD64-OUT

Data sheet

Item Number
SD64-OUT
Material
NdFeB
Grade
N42
Size
3/8" dia. x 1/4" thick with step OUT
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.122 oz. (3.46 g)
Pull Force
7.80 lbs
Diameter
C. 6.35-9.53mm
Thickness
B. 3.18-6.35mm
