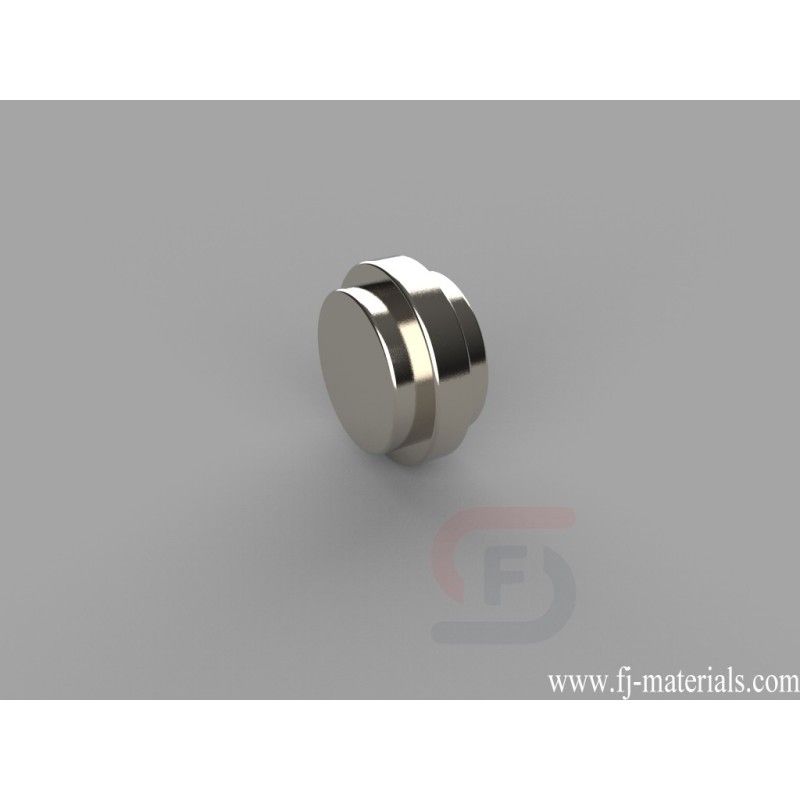

3/4 dia. x 3/8 inch thick with step OUT Round Disc Magnets | SDC6-OUT

SDC6-OUT Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" dia. x 3/8" thick with step OUT, Axial magnetized. Pull force is approximately 28.34 lbs.

Yiwu Fenjiao E-commerce Firm supply SDC6-OUT Neodymium Disc Magnets with high quality at competitive price.

SDC6-OUT Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" dia. x 3/8" thick with step OUT, Axial magnetized. Pull force is approximately 28.34 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

SDC6-OUT

Data sheet

Item Number
SDC6-OUT
Material
NdFeB
Grade
N42
Size
3/4" dia. x 3/8" thick with step OUT
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.787 oz. (22.3 g)
Pull Force
28.34 lbs
Diameter
E. 12.7-19.05mm
Thickness
C. 6.35-9.53mm
