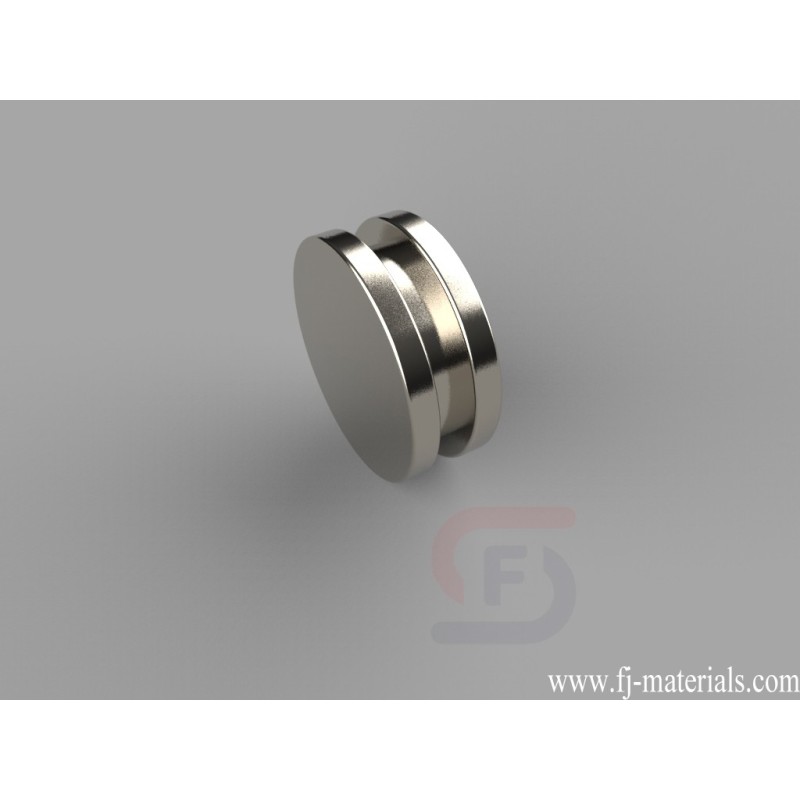

1 dia. x 3/8 inch thick with step IN Round Disc Magnets | SDX06-IN

SDX06-IN Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 3/8" thick with step IN, Axial magnetized. Pull force is approximately 34.71 lbs.

Yiwu Fenjiao E-commerce Firm supply SDX06-IN Neodymium Disc Magnets with high quality at competitive price.

SDX06-IN Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 3/8" thick with step IN, Axial magnetized. Pull force is approximately 34.71 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

SDX06-IN

Data sheet

Item Number
SDX06-IN
Material
NdFeB
Grade
N42
Size
1" dia. x 3/8" thick with step IN
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
1.36 oz. (38.5 g)
Pull Force
34.71 lbs
Diameter
F. 19.05-25.4mm
Thickness
C. 6.35-9.53mm
