1 dia. x 3/8 inch thick with step OUT Round Disc Magnets | SDX06-OUT

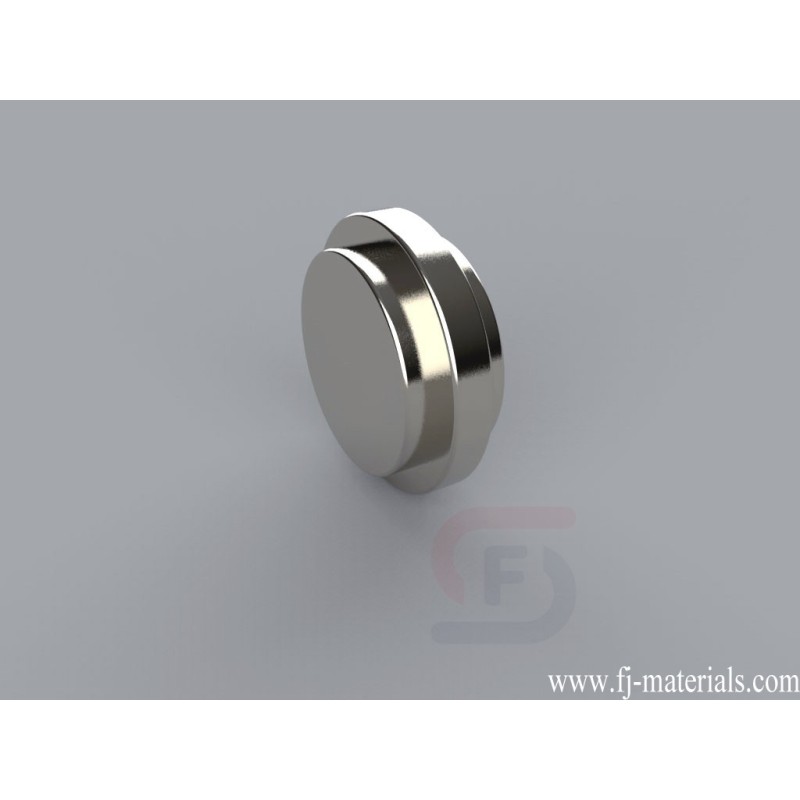

SDX06-OUT Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 3/8" thick with step OUT, Axial magnetized. Pull force is approximately 40.98 lbs.
Yiwu Fenjiao E-commerce Firm supply SDX06-OUT Neodymium Disc Magnets with high quality at competitive price.
SDX06-OUT Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 3/8" thick with step OUT, Axial magnetized. Pull force is approximately 40.98 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
SDX06-OUT
Data sheet
- Item Number
- SDX06-OUT
- Material
- NdFeB
- Grade
- N42
- Size
- 1" dia. x 3/8" thick with step OUT
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.41 oz. (40.0 g)
- Pull Force
- 40.98 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- C. 6.35-9.53mm
SDX06-OUT Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 3/8" thick with step OUT, Axial magnetized. Pull force is approximately 40.98 lbs.
