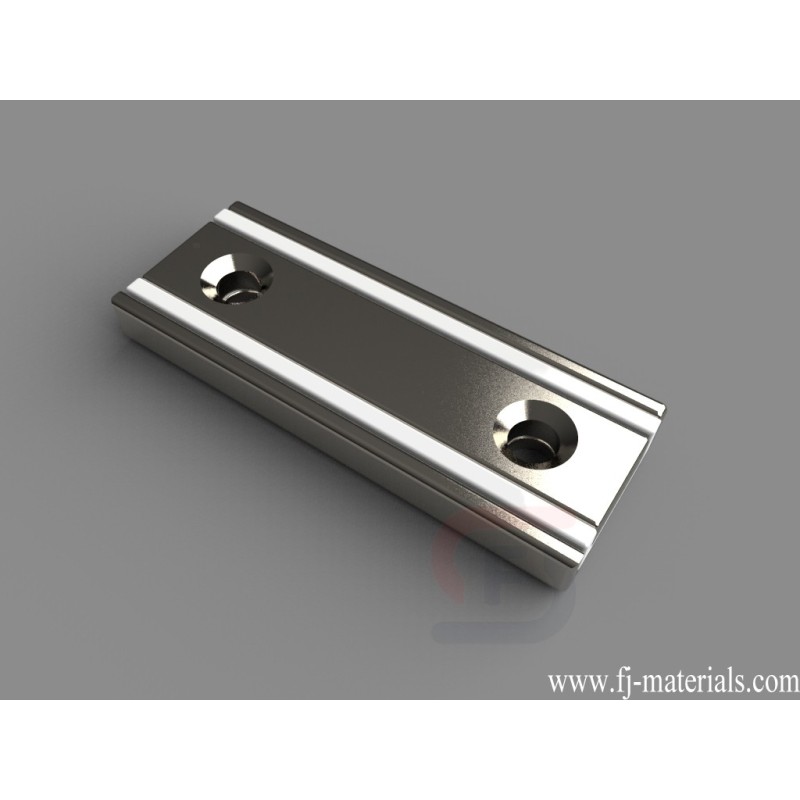

| MMR-A-X8 Rectangular Mounting Magnets

MMR-A-X8 Rectangular Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Length= 1 1/2" (1.5" ) Width= 9/16" (0.563" ) Height= 3/16" (0.188" ) Holes sized for #4 flat-head screws, Thru Thickness magnetized. Pull force is approximately 26.75 lbs.

Yiwu Fenjiao E-commerce Firm supply MMR-A-X8 Rectangular Mounting Magnets with high quality at competitive price.

MMR-A-X8 Rectangular Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Length= 1 1/2" (1.5" ) Width= 9/16" (0.563" ) Height= 3/16" (0.188" ) Holes sized for #4 flat-head screws, Thru Thickness magnetized. Pull force is approximately 26.75 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MMR-A-X8

Data sheet

Item Number
MMR-A-X8
Material
NdFeB
Grade
N42
Size
Length is 1 1/2" (1.5" ) Width is 9/16" (0.563" ) Height is 3/16" (0.188" ) Holes sized for No. 4 flat-head screws
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.63 oz. (17.92 g)
Pull Force
26.75 lbs
