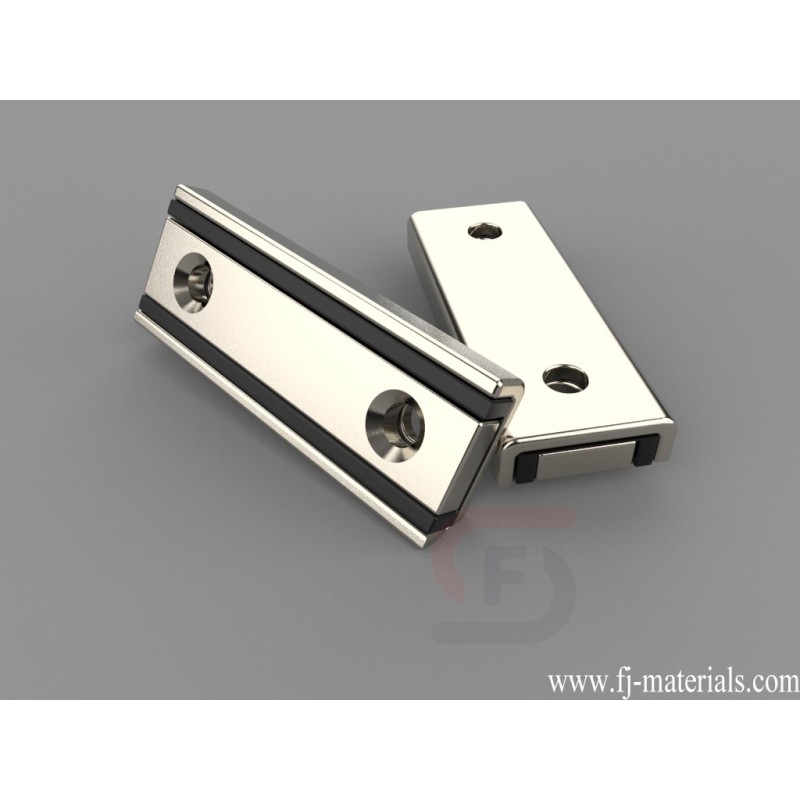

| MMR-A-XC Rectangular Mounting Magnets
MMR-A-XC Rectangular Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Length= 1 3/4" (1.75" ) Width= 3/4" (0.75" ) Height= 5/16" (0.313" ) Holes sized for #6 flat-head screws, Thru Thickness magnetized. Pull force is approximately 54.14 lbs.
Yiwu Fenjiao E-commerce Firm supply MMR-A-XC Rectangular Mounting Magnets with high quality at competitive price.
MMR-A-XC Rectangular Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Length= 1 3/4" (1.75" ) Width= 3/4" (0.75" ) Height= 5/16" (0.313" ) Holes sized for #6 flat-head screws, Thru Thickness magnetized. Pull force is approximately 54.14 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MMR-A-XC
Data sheet
- Item Number
- MMR-A-XC
- Material
- NdFeB
- Grade
- N42
- Size
- Length is 1 3/4" (1.75" ) Width is 3/4" (0.75" ) Height is 5/16" (0.313" ) Holes sized for No. 6 flat-head screws
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.56 oz. (44.24 g)
- Pull Force
- 54.14 lbs
MMR-A-XC Rectangular Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Length= 1 3/4" (1.75" ) Width= 3/4" (0.75" ) Height= 5/16" (0.313" ) Holes sized for #6 flat-head screws, Thru Thickness magnetized. Pull force is approximately 54.14 lbs.
