| MMWR-B-X0 Stainless Mounting Magnets

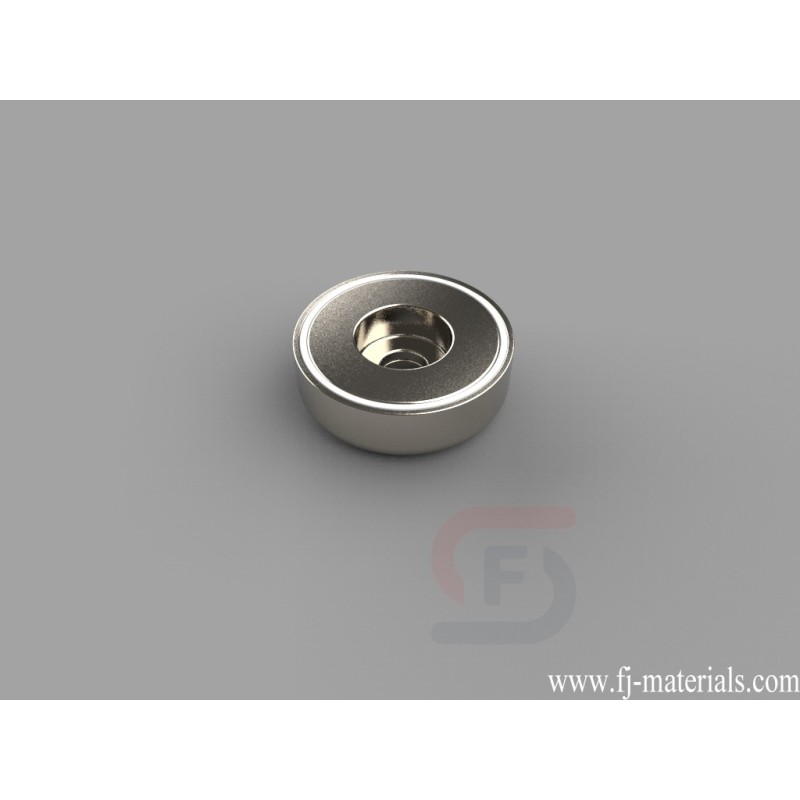

MMWR-B-X0 Stainless Mounting Magnets is made of Grade N42 NdFeB, None. The dimension is Diameter = 1" (1.00" ) Hole Size = #8 Screw Height = 1/4" (0.25" ), Thru Thickness magnetized. Pull force is approximately 13.2 lbs.

Yiwu Fenjiao E-commerce Firm supply MMWR-B-X0 Stainless Mounting Magnets with high quality at competitive price.

MMWR-B-X0 Stainless Mounting Magnets is made of Grade N42 NdFeB, None. The dimension is Diameter = 1" (1.00" ) Hole Size = #8 Screw Height = 1/4" (0.25" ), Thru Thickness magnetized. Pull force is approximately 13.2 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MMWR-B-X0

Data sheet

Item Number
MMWR-B-X0
Material
Magnetic Assemblies
Grade
N42
Size
Diameter is 1" (1.00" ) Hole Size is No. 8 Screw Height is 1/4" (0.25" )
Tolerance
±0.004"(±0.1mm)
Coating
None
Magnetization Direction
Thru Thickness
Weight
0.64 oz. (18.12 g)
Pull Force
13.2 lbs
