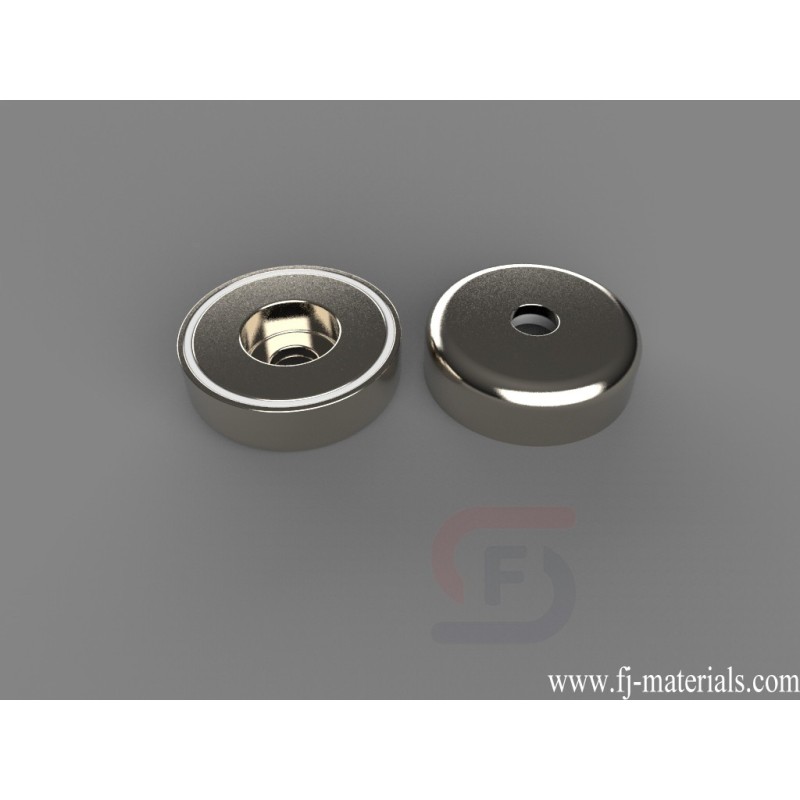

| MMWR-B-X8 Stainless Mounting Magnets

MMWR-B-X8 Stainless Mounting Magnets is made of Grade N42 NdFeB, None. The dimension is Diameter = 1 1/2" (1.5" ) Hole Size = #10 Screw Height = 3/8" (0.375" ), Thru Thickness magnetized. Pull force is approximately 54 lbs.

Yiwu Fenjiao E-commerce Firm supply MMWR-B-X8 Stainless Mounting Magnets with high quality at competitive price.

MMWR-B-X8 Stainless Mounting Magnets is made of Grade N42 NdFeB, None. The dimension is Diameter = 1 1/2" (1.5" ) Hole Size = #10 Screw Height = 3/8" (0.375" ), Thru Thickness magnetized. Pull force is approximately 54 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MMWR-B-X8

Data sheet

Item Number
MMWR-B-X8
Material
Magnetic Assemblies
Grade
N42
Size
Diameter is 1 1/2" (1.5" ) Hole Size is No. 10 Screw Height is 3/8" (0.375" )
Tolerance
±0.004"(±0.1mm)
Coating
None
Magnetization Direction
Thru Thickness
Weight
2.3 oz. (65.24 g)
Pull Force
54 lbs
