| MMS-A-C Standard Mounting Magnets

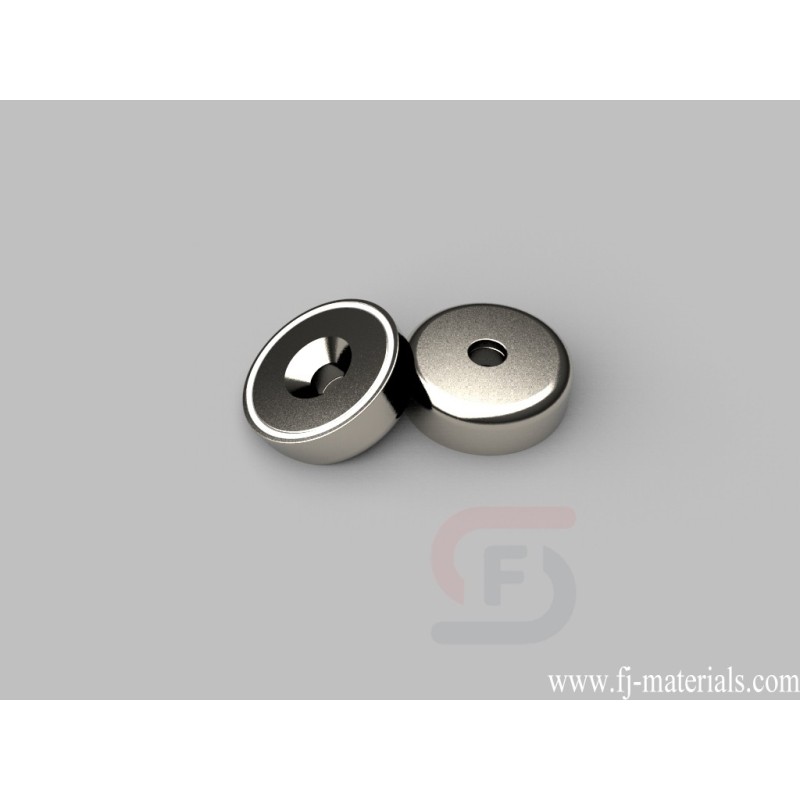

MMS-A-C Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter= 3/4" (0.75" ) Hole Size= #6 Screw Height= 1/4" (0.25" ), Axial magnetized. Pull force is approximately 19.71 lbs.

Yiwu Fenjiao E-commerce Firm supply MMS-A-C Standard Mounting Magnets with high quality at competitive price.

MMS-A-C Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter= 3/4" (0.75" ) Hole Size= #6 Screw Height= 1/4" (0.25" ), Axial magnetized. Pull force is approximately 19.71 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MMS-A-C

Data sheet

Item Number
MMS-A-C
Material
NdFeB
Grade
N42
Size
Diameter is 3/4" (0.75" ) Hole Size is No. 6 Screw Height is 1/4" (0.25" )
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.374 oz. (10.61g)
Pull Force
19.71 lbs
