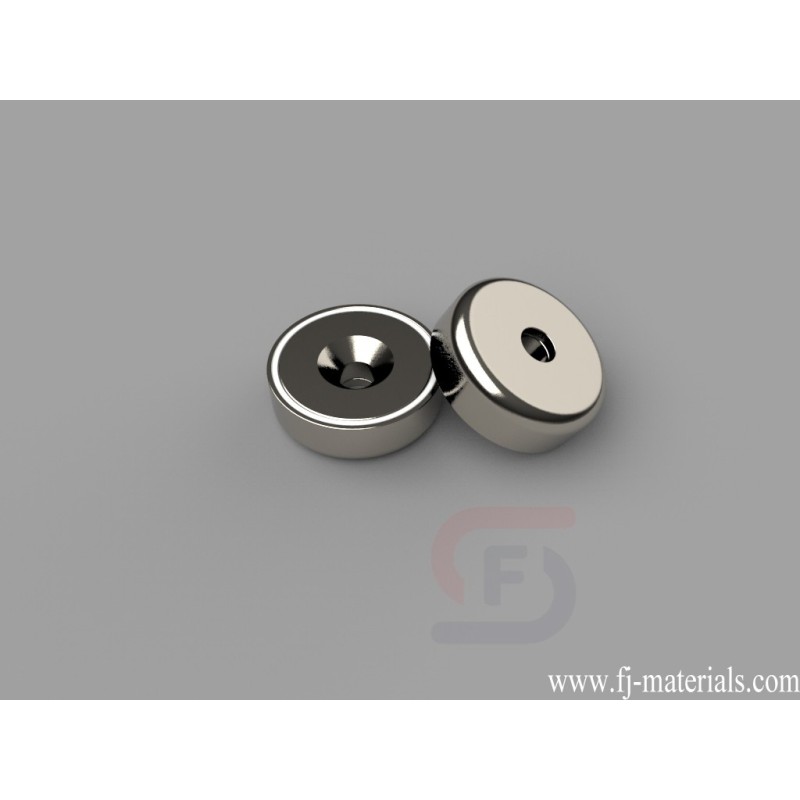

| MMS-A-X0 Standard Mounting Magnets
MMS-A-X0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter= 1" (1.0" ) Hole Size= #8 Screw Height= 1/4" (0.25" ), Axial magnetized. Pull force is approximately 36.87 lbs.
Yiwu Fenjiao E-commerce Firm supply MMS-A-X0 Standard Mounting Magnets with high quality at competitive price.
MMS-A-X0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter= 1" (1.0" ) Hole Size= #8 Screw Height= 1/4" (0.25" ), Axial magnetized. Pull force is approximately 36.87 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MMS-A-X0
Data sheet
- Item Number
- MMS-A-X0
- Material
- NdFeB
- Grade
- N42
- Size
- Diameter is 1" (1.0" ) Hole Size is No. 8 Screw Height is 1/4" (0.25" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.737 oz. (20.89 g)
- Pull Force
- 36.87 lbs
MMS-A-X0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter= 1" (1.0" ) Hole Size= #8 Screw Height= 1/4" (0.25" ), Axial magnetized. Pull force is approximately 36.87 lbs.
