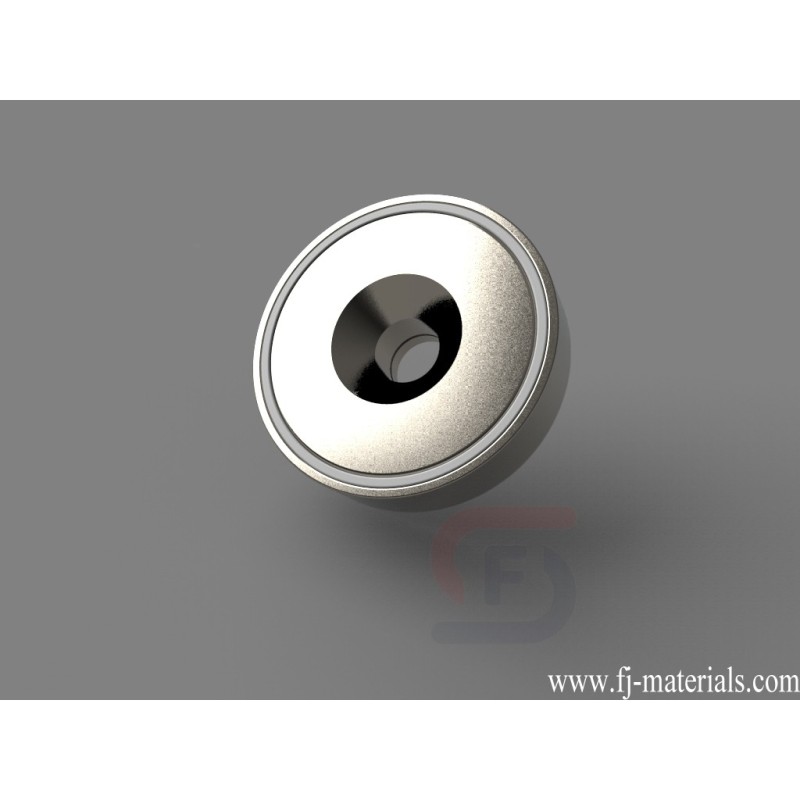

| MMS-A-X8 Standard Mounting Magnets

MMS-A-X8 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter= 1 1/2" (1.5" ) Hole Size= #10 Screw Height= 3/8" (0.375" ), Axial magnetized. Pull force is approximately 92.34 lbs.

Yiwu Fenjiao E-commerce Firm supply MMS-A-X8 Standard Mounting Magnets with high quality at competitive price.

MMS-A-X8 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter= 1 1/2" (1.5" ) Hole Size= #10 Screw Height= 3/8" (0.375" ), Axial magnetized. Pull force is approximately 92.34 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MMS-A-X8

Data sheet

Item Number
MMS-A-X8
Material
NdFeB
Grade
N42
Size
Diameter is 1 1/2" (1.5" ) Hole Size is No. 10 Screw Height is 3/8" (0.375" )
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
2.51 oz. (71.29 g)
Pull Force
92.34 lbs
