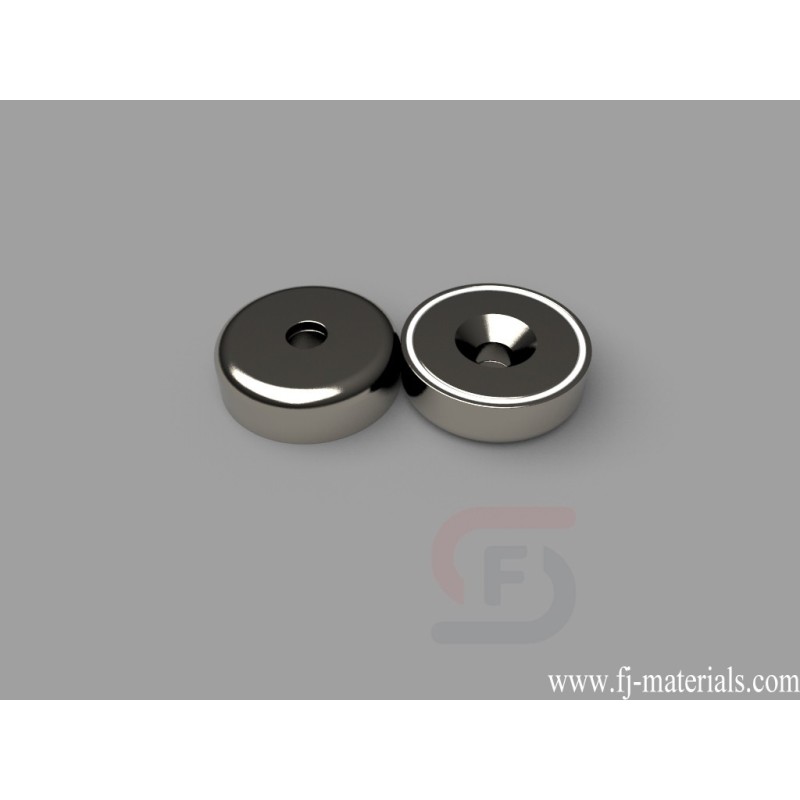

| MMS-A-Z0 Standard Mounting Magnets

MMS-A-Z0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter= 3" (3.00" ) Hole Size= 3/8" Screw Height= 3/4" (0.750" ), Axial magnetized. Pull force is approximately 350.1 lbs.

Yiwu Fenjiao E-commerce Firm supply MMS-A-Z0 Standard Mounting Magnets with high quality at competitive price.

MMS-A-Z0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter= 3" (3.00" ) Hole Size= 3/8" Screw Height= 3/4" (0.750" ), Axial magnetized. Pull force is approximately 350.1 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MMS-A-Z0

Data sheet

Item Number
MMS-A-Z0
Material
NdFeB
Grade
N42
Size
Diameter is 3" (3.00" ) Hole Size is 3/8" Screw Height is 3/4" (0.750" )
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
20.53 oz. (582.2 g)
Pull Force
350.1 lbs
