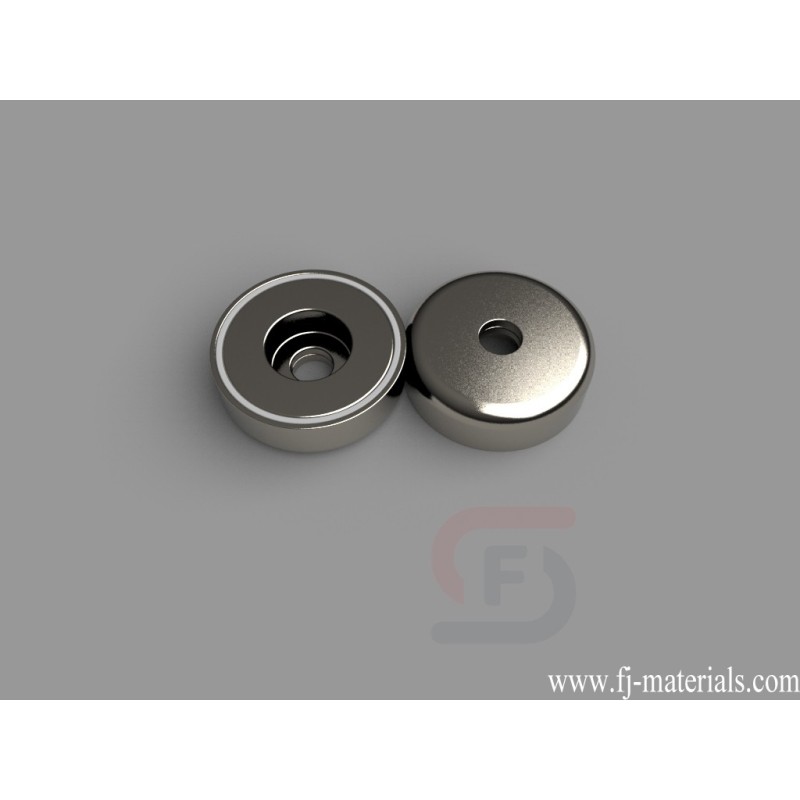

| MMS-B-A Standard Mounting Magnets
MMS-B-A Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 5/8" (0.625" ) Hole Size = #4 Screw Height = 3/16" (0.187" ), Axial magnetized. Pull force is approximately 10.46 lbs.
Yiwu Fenjiao E-commerce Firm supply MMS-B-A Standard Mounting Magnets with high quality at competitive price.
MMS-B-A Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 5/8" (0.625" ) Hole Size = #4 Screw Height = 3/16" (0.187" ), Axial magnetized. Pull force is approximately 10.46 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MMS-B-A
Data sheet
- Item Number
- MMS-B-A
- Material
- NdFeB
- Grade
- N42
- Size
- Diameter is 5/8" (0.625" ) Hole Size is No. 4 Screw Height is 3/16" (0.187" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.197 oz. (5.58 g)
- Pull Force
- 10.46 lbs
MMS-B-A Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 5/8" (0.625" ) Hole Size = #4 Screw Height = 3/16" (0.187" ), Axial magnetized. Pull force is approximately 10.46 lbs.
