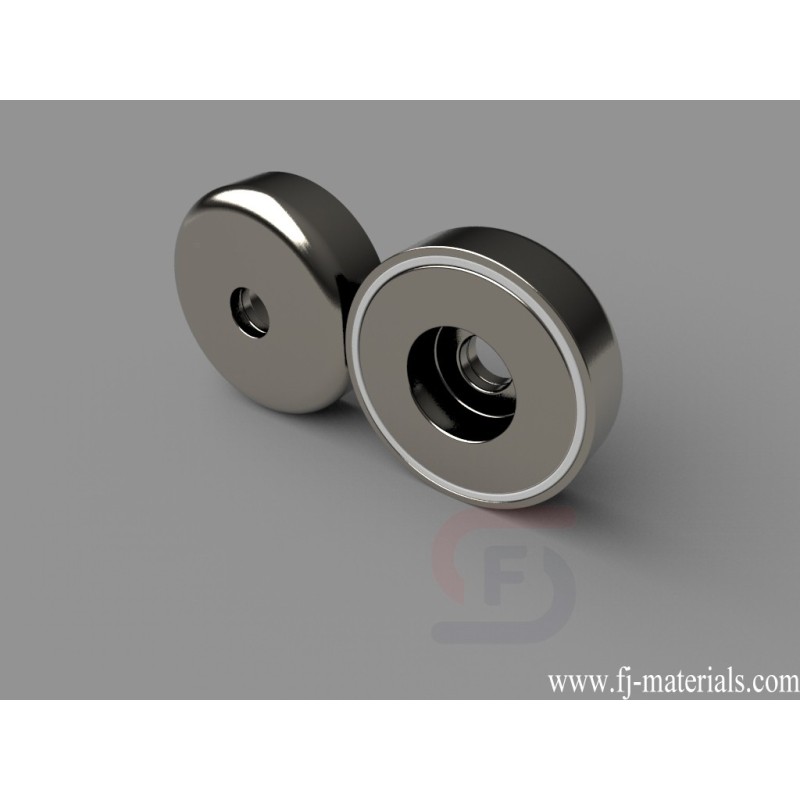

| MMS-B-X0 Standard Mounting Magnets

MMS-B-X0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1" (1.00" ) Hole Size = #8 Screw Height = 1/4" (0.25" ), Axial magnetized. Pull force is approximately 30.49 lbs.

Yiwu Fenjiao E-commerce Firm supply MMS-B-X0 Standard Mounting Magnets with high quality at competitive price.

MMS-B-X0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1" (1.00" ) Hole Size = #8 Screw Height = 1/4" (0.25" ), Axial magnetized. Pull force is approximately 30.49 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MMS-B-X0

Data sheet

Item Number
MMS-B-X0
Material
NdFeB
Grade
N42
Size
Diameter is 1" (1.00" ) Hole Size is No. 8 Screw Height is 1/4" (0.25" )
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.682 oz. (19.34 g)
Pull Force
30.49 lbs
