| MMS-B-X4 Standard Mounting Magnets

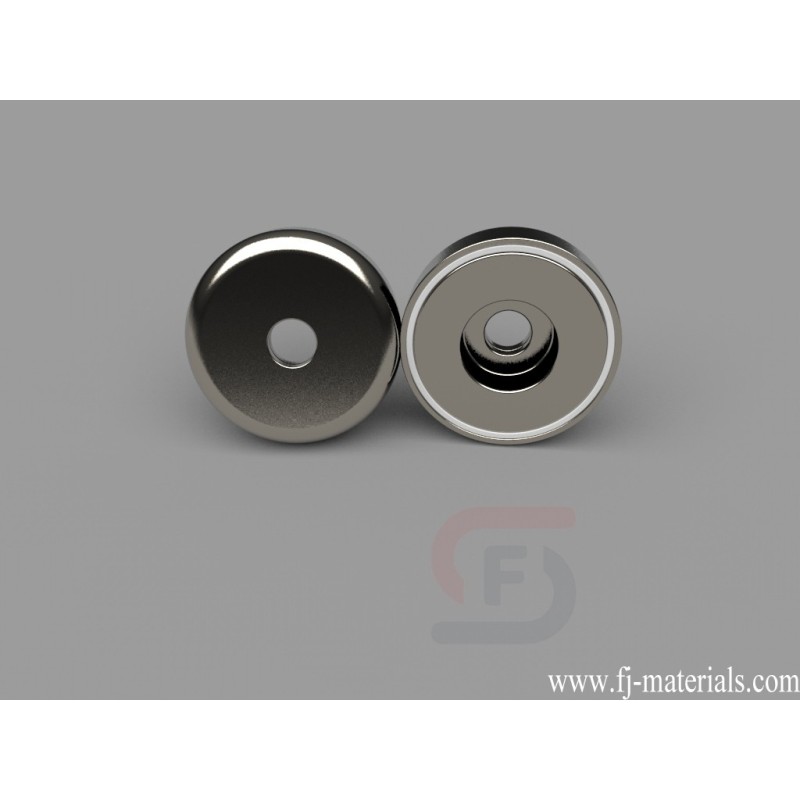

MMS-B-X4 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 1/4" (1.25" ) Hole Size = #10 Screw Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 52.42 lbs.

Yiwu Fenjiao E-commerce Firm supply MMS-B-X4 Standard Mounting Magnets with high quality at competitive price.

MMS-B-X4 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 1/4" (1.25" ) Hole Size = #10 Screw Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 52.42 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MMS-B-X4

Data sheet

Item Number
MMS-B-X4
Material
NdFeB
Grade
N42
Size
Diameter is 1 1/4" (1.25" ) Hole Size is No. 10 Screw Height is 3/8" (0.375" )
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
1.513 oz. (42.89 g)
Pull Force
52.42 lbs
