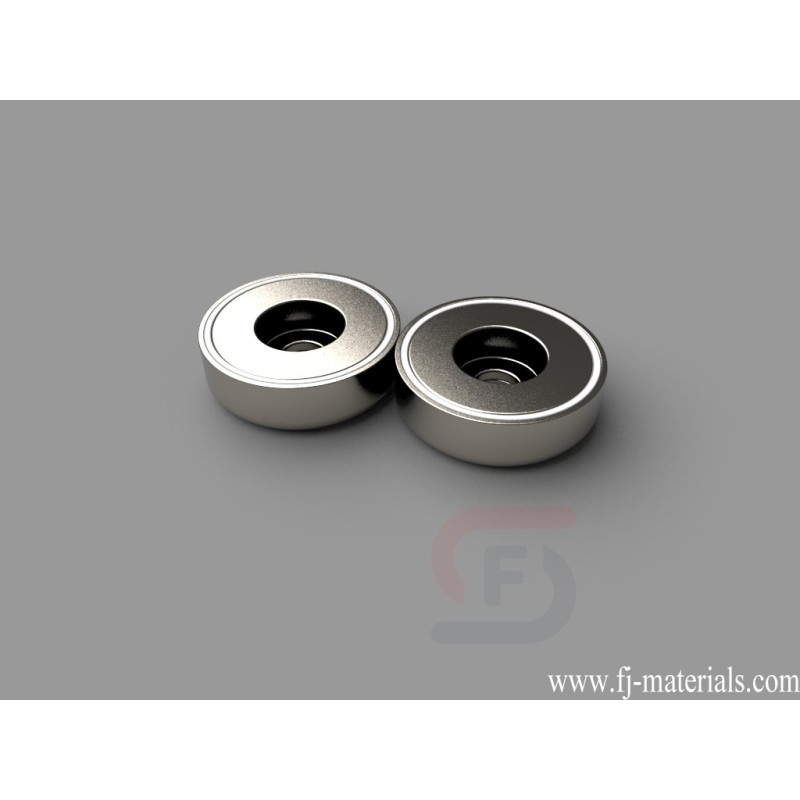

| MMS-B-XC Standard Mounting Magnets
MMS-B-XC Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 3/4" (1.75" ) Hole Size = 1/4" Screw Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 117.3 lbs.
Yiwu Fenjiao E-commerce Firm supply MMS-B-XC Standard Mounting Magnets with high quality at competitive price.
MMS-B-XC Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 3/4" (1.75" ) Hole Size = 1/4" Screw Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 117.3 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MMS-B-XC
Data sheet
- Item Number
- MMS-B-XC
- Material
- NdFeB
- Grade
- N42
- Size
- Diameter is 1 3/4" (1.75" ) Hole Size is 1/4" Screw Height is 3/8" (0.375" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 3.269 oz. (92.69 g)
- Pull Force
- 117.3 lbs
MMS-B-XC Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 3/4" (1.75" ) Hole Size = 1/4" Screw Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 117.3 lbs.
