| MMS-B-Y0 Standard Mounting Magnets

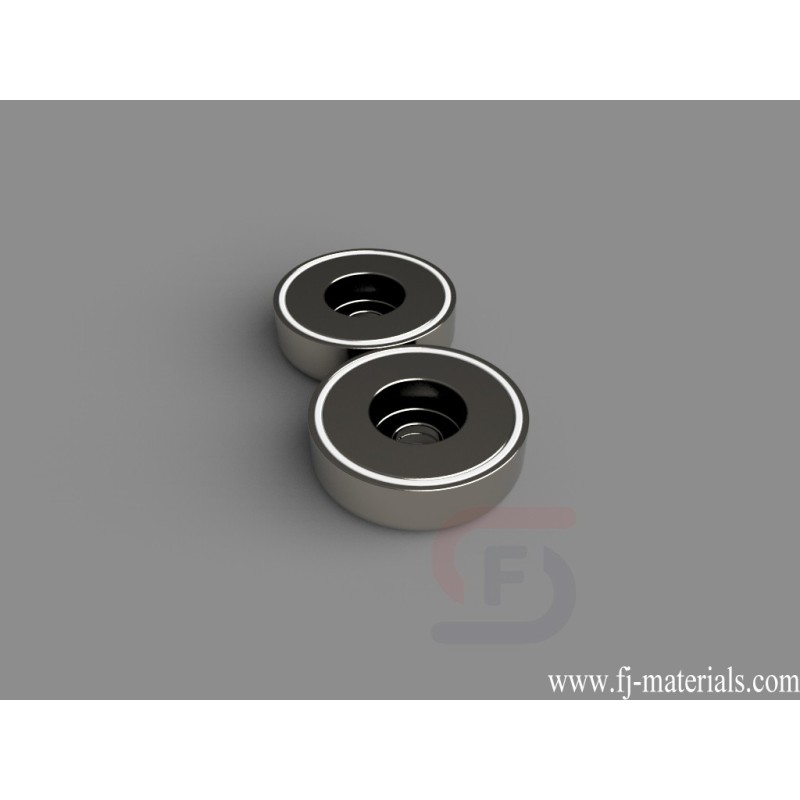

MMS-B-Y0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 2" (2.00" ) Hole Size = 1/4" Screw Height = 1/2" (0.500" ), Axial magnetized. Pull force is approximately 158.8 lbs.

Yiwu Fenjiao E-commerce Firm supply MMS-B-Y0 Standard Mounting Magnets with high quality at competitive price.

MMS-B-Y0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 2" (2.00" ) Hole Size = 1/4" Screw Height = 1/2" (0.500" ), Axial magnetized. Pull force is approximately 158.8 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MMS-B-Y0

Data sheet

Item Number
MMS-B-Y0
Material
NdFeB
Grade
N42
Size
Diameter is 2" (2.00" ) Hole Size is 1/4" Screw Height is 1/2" (0.500" )
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
5.699 oz. (161.6 g)
Pull Force
158.8 lbs
