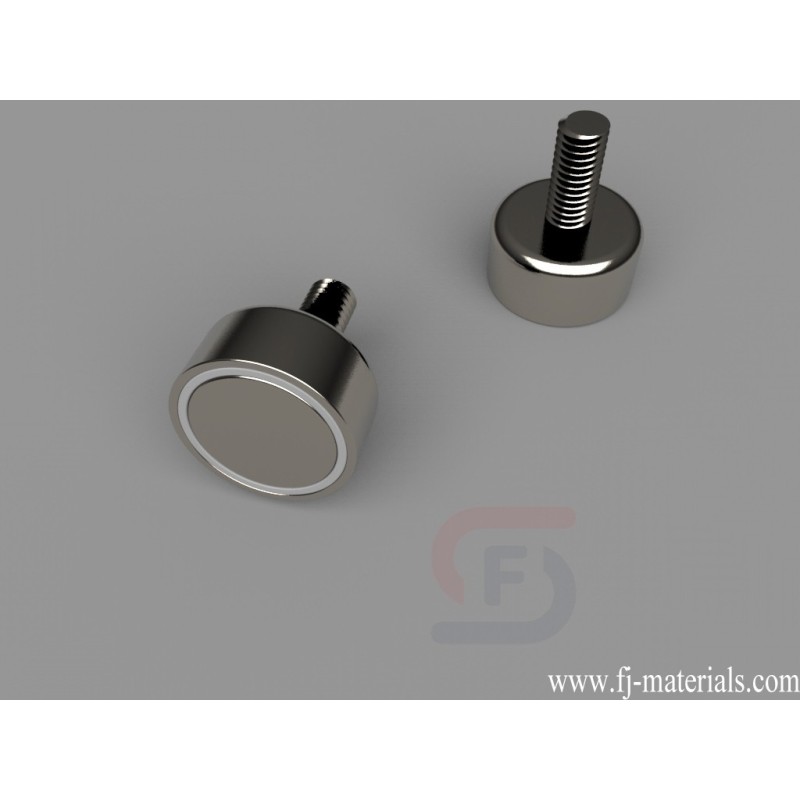

| MMS-C-XC Standard Mounting Magnets
MMS-C-XC Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 3/4" (1.75" ) Threaded Male Stud = 1/4" -20 UNC 2A Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 125.4 lbs.
Yiwu Fenjiao E-commerce Firm supply MMS-C-XC Standard Mounting Magnets with high quality at competitive price.
MMS-C-XC Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 3/4" (1.75" ) Threaded Male Stud = 1/4" -20 UNC 2A Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 125.4 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MMS-C-XC
Data sheet
- Item Number
- MMS-C-XC
- Material
- NdFeB
- Grade
- N42
- Size
- Diameter is 1 3/4" (1.75" ) Threaded Male Stud is 1/4" -20 UNC 2A Height is 3/8" (0.375" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 3.70 oz. (105.0 g)
- Pull Force
- 125.4 lbs
MMS-C-XC Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 3/4" (1.75" ) Threaded Male Stud = 1/4" -20 UNC 2A Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 125.4 lbs.
