| MMS-C-Y0 Standard Mounting Magnets

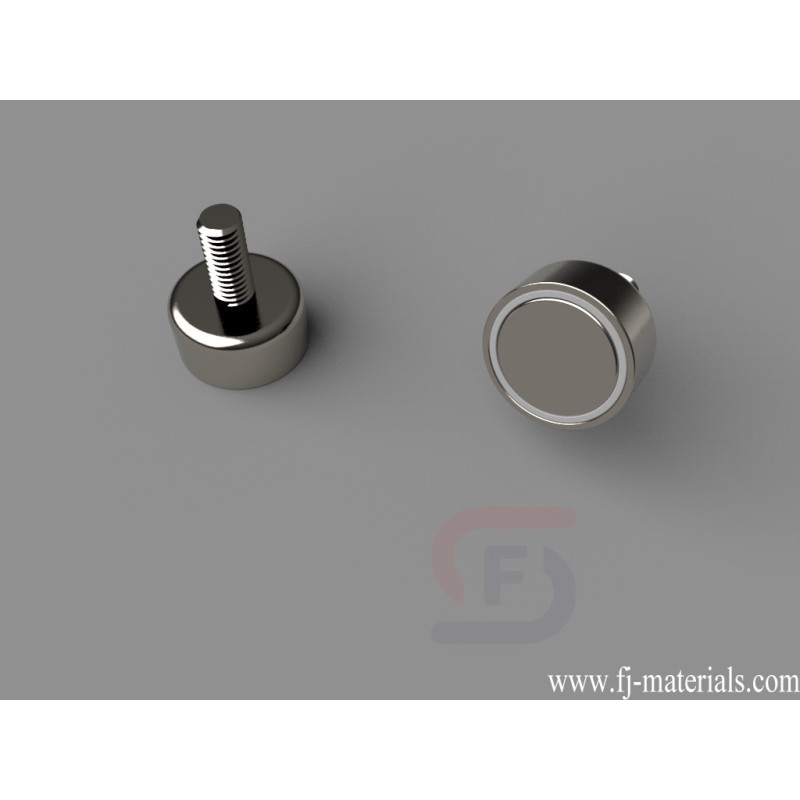

MMS-C-Y0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 2" (2.00" ) Threaded Male Stud = 1/4" -20 UNC 2A Height = 1/2" (0.50" ), Axial magnetized. Pull force is approximately 173.0 lbs.

Yiwu Fenjiao E-commerce Firm supply MMS-C-Y0 Standard Mounting Magnets with high quality at competitive price.

MMS-C-Y0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 2" (2.00" ) Threaded Male Stud = 1/4" -20 UNC 2A Height = 1/2" (0.50" ), Axial magnetized. Pull force is approximately 173.0 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MMS-C-Y0

Data sheet

Item Number
MMS-C-Y0
Material
NdFeB
Grade
N42
Size
Diameter is 2" (2.00" ) Threaded Male Stud is 1/4" -20 UNC 2A Height is 1/2" (0.50" )
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
6.27 oz. (176.5 g)
Pull Force
173.0 lbs

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
