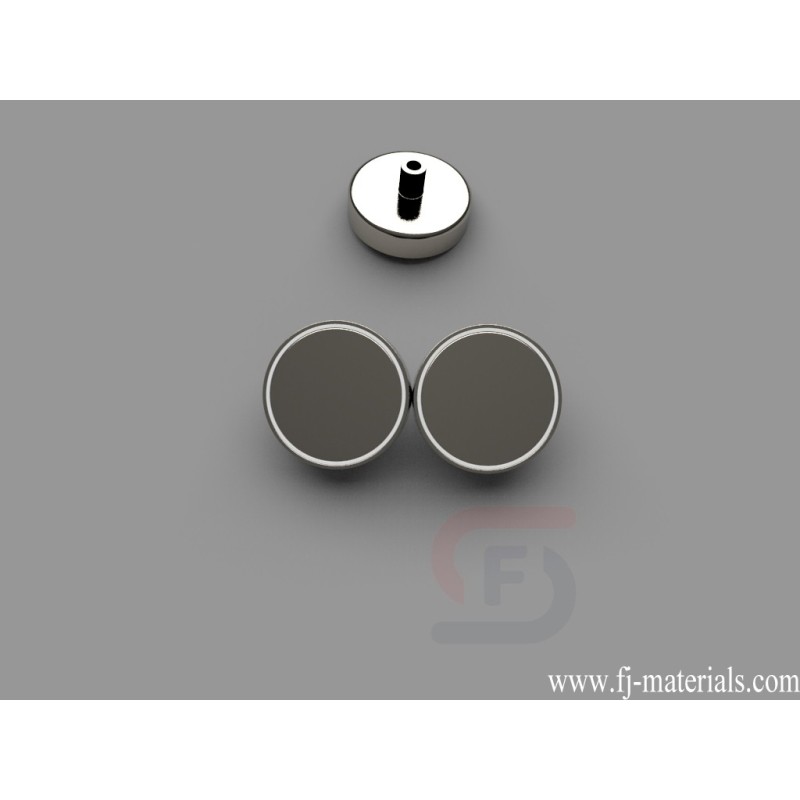

| MMS-D-X4 Standard Mounting Magnets
MMS-D-X4 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 1/4" (1.25" ) Threaded Female Stud = #10-32 UNF 2B Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 61.40 lbs.
Yiwu Fenjiao E-commerce Firm supply MMS-D-X4 Standard Mounting Magnets with high quality at competitive price.
MMS-D-X4 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 1/4" (1.25" ) Threaded Female Stud = #10-32 UNF 2B Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 61.40 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MMS-D-X4
Data sheet
- Item Number
- MMS-D-X4
- Material
- NdFeB
- Grade
- N42
- Size
- Diameter is 1 1/4" (1.25" ) Threaded Female Stud is No. 10-32 UNF 2B Height is 3/8" (0.375" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.76 oz. (49.87 g)
- Pull Force
- 61.40 lbs
MMS-D-X4 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 1/4" (1.25" ) Threaded Female Stud = #10-32 UNF 2B Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 61.40 lbs.
