| MMS-D-X8 Standard Mounting Magnets

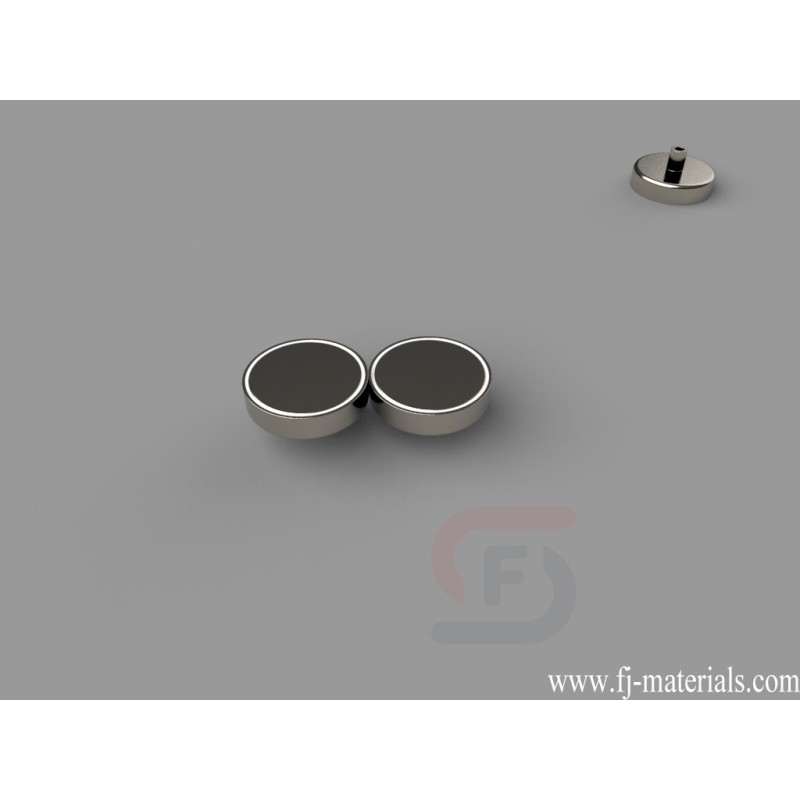

MMS-D-X8 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 1/2" (1.50" ) Threaded Female Stud = #10-32 UNF 2B Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 95.78 lbs.
Yiwu Fenjiao E-commerce Firm supply MMS-D-X8 Standard Mounting Magnets with high quality at competitive price.
MMS-D-X8 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 1/2" (1.50" ) Threaded Female Stud = #10-32 UNF 2B Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 95.78 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MMS-D-X8
Data sheet
- Item Number
- MMS-D-X8
- Material
- NdFeB
- Grade
- N42
- Size
- Diameter is 1 1/2" (1.50" ) Threaded Female Stud is No. 10-32 UNF 2B Height is 3/8" (0.375" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 2.64 oz. (74.77 g)
- Pull Force
- 95.78 lbs
MMS-D-X8 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 1/2" (1.50" ) Threaded Female Stud = #10-32 UNF 2B Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 95.78 lbs.
