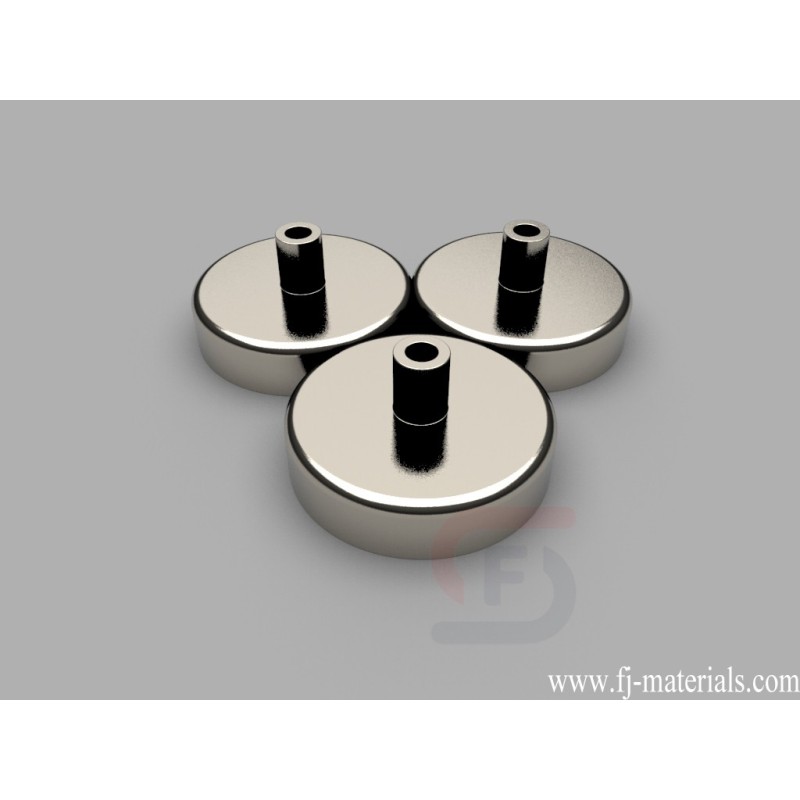

| MMS-D-Y8 Standard Mounting Magnets
MMS-D-Y8 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 2 1/2" (2.50" ) Threaded Female Stud = 3/8" -16 UNC 2B Height = 5/8" (0.625" ), Axial magnetized. Pull force is approximately 259.1 lbs.
Yiwu Fenjiao E-commerce Firm supply MMS-D-Y8 Standard Mounting Magnets with high quality at competitive price.
MMS-D-Y8 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 2 1/2" (2.50" ) Threaded Female Stud = 3/8" -16 UNC 2B Height = 5/8" (0.625" ), Axial magnetized. Pull force is approximately 259.1 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MMS-D-Y8
Data sheet
- Item Number
- MMS-D-Y8
- Material
- NdFeB
- Grade
- N42
- Size
- Diameter is 2 1/2" (2.50" ) Threaded Female Stud is 3/8" -16 UNC 2B Height is 5/8" (0.625" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 12.56 oz. (356.1 g)
- Pull Force
- 259.1 lbs
MMS-D-Y8 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 2 1/2" (2.50" ) Threaded Female Stud = 3/8" -16 UNC 2B Height = 5/8" (0.625" ), Axial magnetized. Pull force is approximately 259.1 lbs.
