| MMS-E-Y0 Standard Mounting Magnets

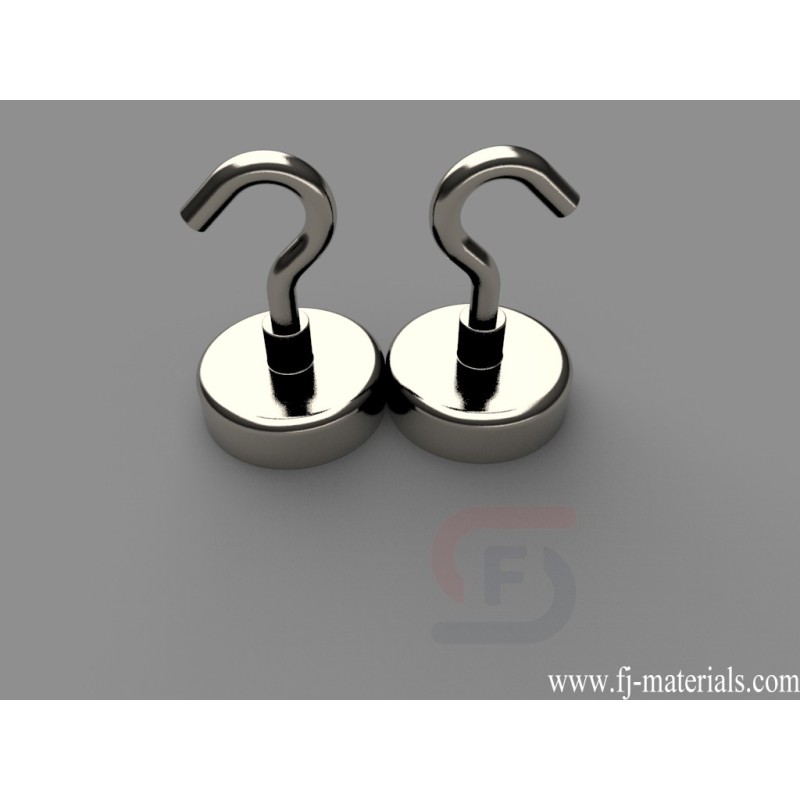

MMS-E-Y0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 2" (2.00" ) Height = 3" (3.0" ) Hook Attachment = 1/4" -20 Threaded Open Hook, Axial magnetized. Pull force is approximately 173.0 lbs.
Yiwu Fenjiao E-commerce Firm supply MMS-E-Y0 Standard Mounting Magnets with high quality at competitive price.
MMS-E-Y0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 2" (2.00" ) Height = 3" (3.0" ) Hook Attachment = 1/4" -20 Threaded Open Hook, Axial magnetized. Pull force is approximately 173.0 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MMS-E-Y0
Data sheet
- Item Number
- MMS-E-Y0
- Material
- NdFeB
- Grade
- N42
- Size
- Diameter is 2" (2.00" ) Height is 3" (3.0" ) Hook Attachment is 1/4" -20 Threaded Open Hook
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 7.09 oz. (201.1 g)
- Pull Force
- 173.0 lbs
MMS-E-Y0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 2" (2.00" ) Height = 3" (3.0" ) Hook Attachment = 1/4" -20 Threaded Open Hook, Axial magnetized. Pull force is approximately 173.0 lbs.
