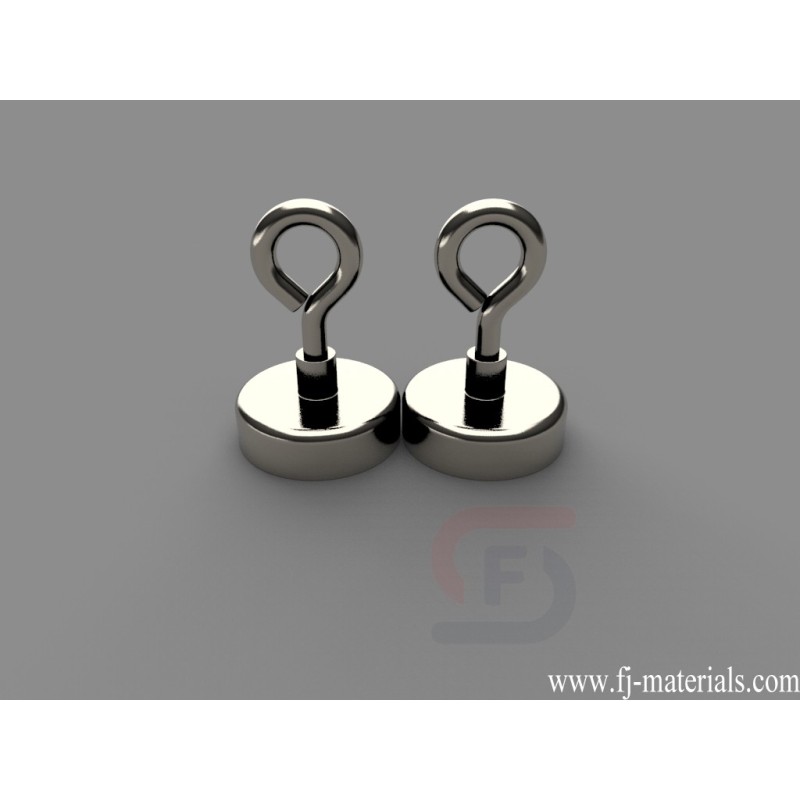

| MMS-G-X0 Standard Mounting Magnets
MMS-G-X0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1" (1.00" ) Height = 2" (2.0" ) Hook Attachment = #8-32 Threaded Eye Hook, Axial magnetized. Pull force is approximately 40.64 lbs.
Yiwu Fenjiao E-commerce Firm supply MMS-G-X0 Standard Mounting Magnets with high quality at competitive price.
MMS-G-X0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1" (1.00" ) Height = 2" (2.0" ) Hook Attachment = #8-32 Threaded Eye Hook, Axial magnetized. Pull force is approximately 40.64 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MMS-G-X0
Data sheet
- Item Number
- MMS-G-X0
- Material
- NdFeB
- Grade
- N42
- Size
- Diameter is 1" (1.00" ) Height is 2" (2.0" ) Hook Attachment is No. 8-32 Threaded Eye Hook
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.20 oz. (34.14 g)
- Pull Force
- 40.64 lbs
MMS-G-X0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1" (1.00" ) Height = 2" (2.0" ) Hook Attachment = #8-32 Threaded Eye Hook, Axial magnetized. Pull force is approximately 40.64 lbs.
