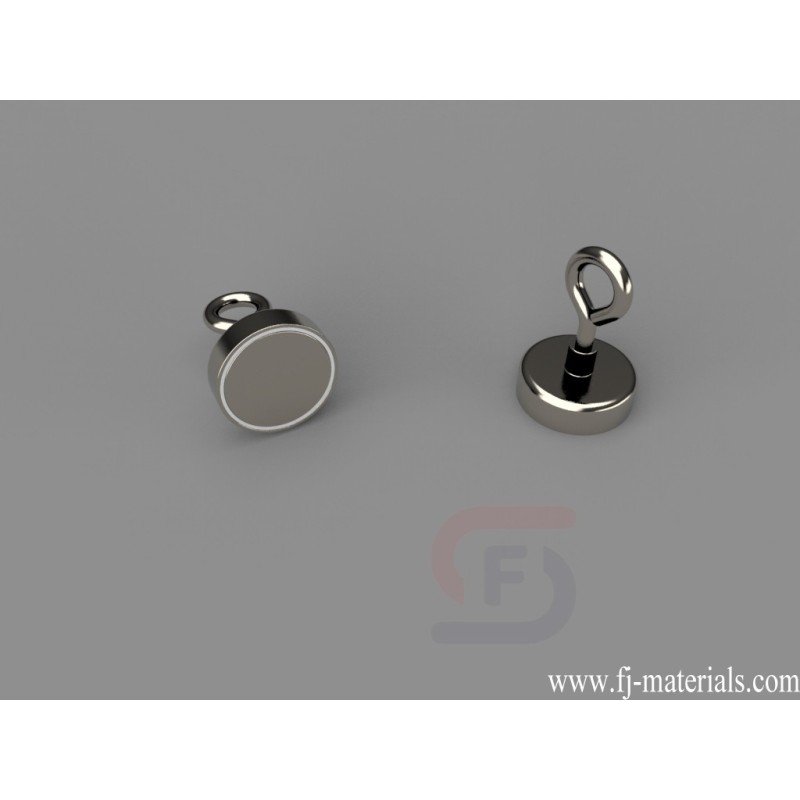

| MMS-G-XC Standard Mounting Magnets
MMS-G-XC Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 3/4" (1.75" ) Height = 2 4/5" (2.80" ) Hook Attachment = 1/4" -20 Threaded Eye Hook, Axial magnetized. Pull force is approximately 125.4 lbs.
Yiwu Fenjiao E-commerce Firm supply MMS-G-XC Standard Mounting Magnets with high quality at competitive price.
MMS-G-XC Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 3/4" (1.75" ) Height = 2 4/5" (2.80" ) Hook Attachment = 1/4" -20 Threaded Eye Hook, Axial magnetized. Pull force is approximately 125.4 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MMS-G-XC
Data sheet
- Item Number
- MMS-G-XC
- Material
- NdFeB
- Grade
- N42
- Size
- Diameter is 1 3/4" (1.75" ) Height is 2 4/5" (2.80" ) Hook Attachment is 1/4" -20 Threaded Eye Hook
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 4.74 oz. (134.4 g)
- Pull Force
- 125.4 lbs
MMS-G-XC Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 3/4" (1.75" ) Height = 2 4/5" (2.80" ) Hook Attachment = 1/4" -20 Threaded Eye Hook, Axial magnetized. Pull force is approximately 125.4 lbs.
