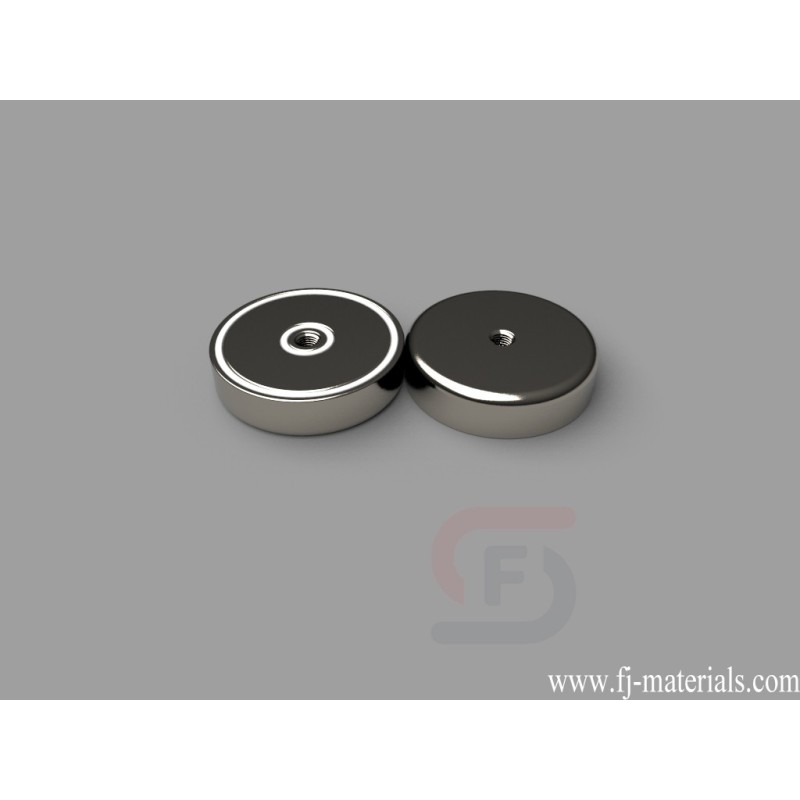

| MMS-H-C Standard Mounting Magnets
MMS-H-C Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 3/4" (0.750" ) Internal Thread Size = #6-32 UNC 2B Height = 1/4" (0.250" ), Axial magnetized. Pull force is approximately 17.09 lbs.
Yiwu Fenjiao E-commerce Firm supply MMS-H-C Standard Mounting Magnets with high quality at competitive price.
MMS-H-C Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 3/4" (0.750" ) Internal Thread Size = #6-32 UNC 2B Height = 1/4" (0.250" ), Axial magnetized. Pull force is approximately 17.09 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MMS-H-C
Data sheet
- Item Number
- MMS-H-C
- Material
- NdFeB
- Grade
- N42
- Size
- Diameter is 3/4" (0.750" ) Internal Thread Size is No. 6-32 UNC 2B Height is 1/4" (0.250" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.418 oz. (11.84 g)
- Pull Force
- 17.09 lbs
MMS-H-C Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 3/4" (0.750" ) Internal Thread Size = #6-32 UNC 2B Height = 1/4" (0.250" ), Axial magnetized. Pull force is approximately 17.09 lbs.
