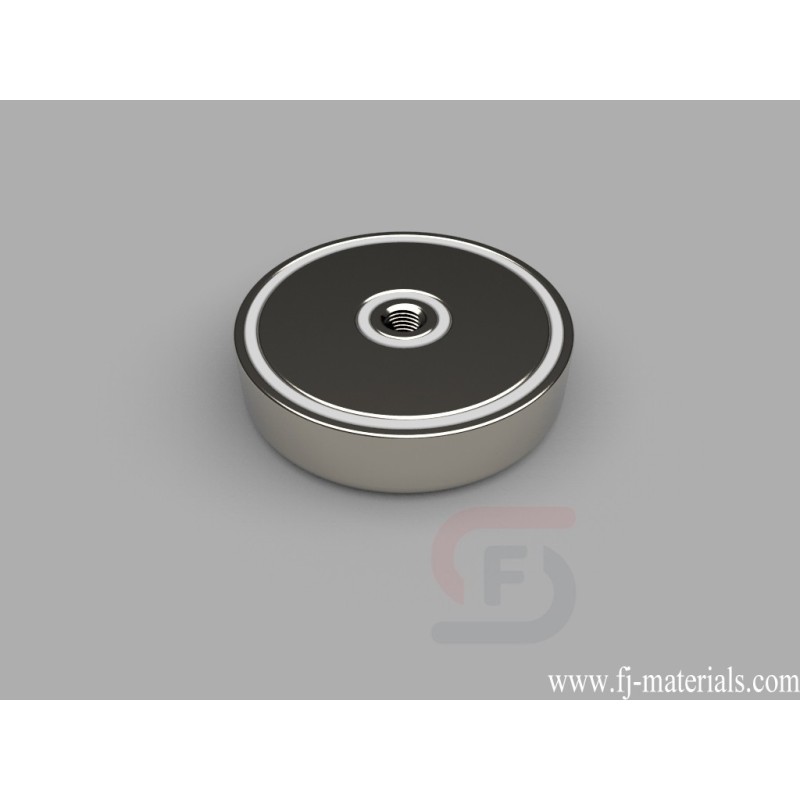

| MMS-H-XC Standard Mounting Magnets

MMS-H-XC Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 3/4" (1.75" ) Internal Thread Size = 1/4" -20 UNC 2B Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 142.05 lbs.

Yiwu Fenjiao E-commerce Firm supply MMS-H-XC Standard Mounting Magnets with high quality at competitive price.

MMS-H-XC Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 1 3/4" (1.75" ) Internal Thread Size = 1/4" -20 UNC 2B Height = 3/8" (0.375" ), Axial magnetized. Pull force is approximately 142.05 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MMS-H-XC

Data sheet

Item Number
MMS-H-XC
Material
NdFeB
Grade
N42
Size
Diameter is 1 3/4" (1.75" ) Internal Thread Size is 1/4" -20 UNC 2B Height is 3/8" (0.375" )
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
3.62 oz. (102.67 g)
Pull Force
142.05 lbs
