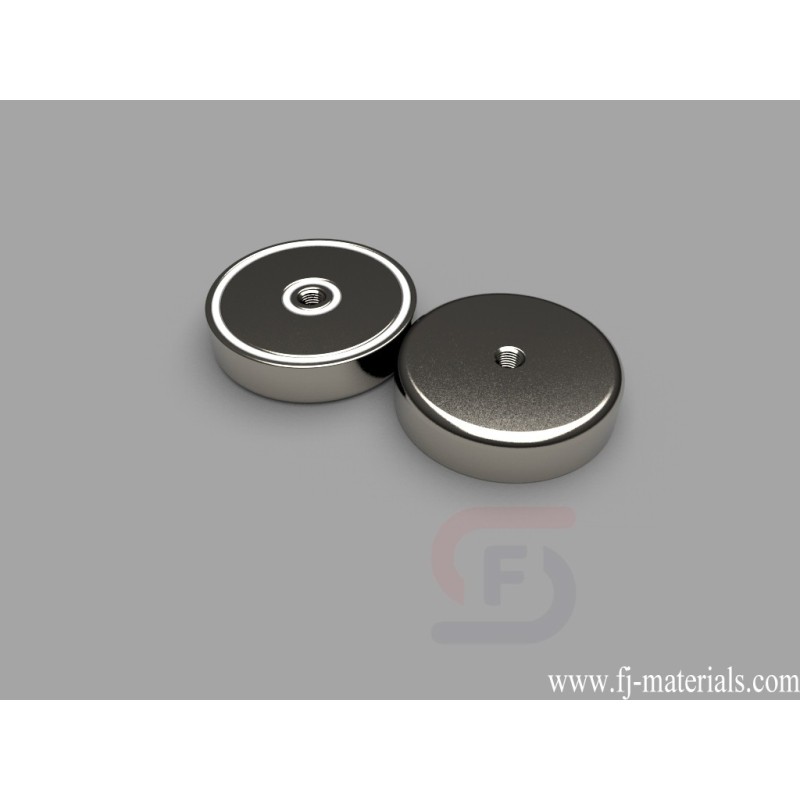

| MMS-H-Y0 Standard Mounting Magnets
MMS-H-Y0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 2" (2.00" ) Internal Thread Size = 1/4" -20 UNC 2B Height = 1/2" (0.5" ), Axial magnetized. Pull force is approximately 190.0 lbs.
Yiwu Fenjiao E-commerce Firm supply MMS-H-Y0 Standard Mounting Magnets with high quality at competitive price.
MMS-H-Y0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 2" (2.00" ) Internal Thread Size = 1/4" -20 UNC 2B Height = 1/2" (0.5" ), Axial magnetized. Pull force is approximately 190.0 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MMS-H-Y0
Data sheet
- Item Number
- MMS-H-Y0
- Material
- NdFeB
- Grade
- N42
- Size
- Diameter is 2" (2.00" ) Internal Thread Size is 1/4" -20 UNC 2B Height is 1/2" (0.5" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 6.27 oz. (177.7 g)
- Pull Force
- 190.0 lbs
MMS-H-Y0 Standard Mounting Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is Diameter = 2" (2.00" ) Internal Thread Size = 1/4" -20 UNC 2B Height = 1/2" (0.5" ), Axial magnetized. Pull force is approximately 190.0 lbs.
