| MM-A-32 Metric Mounting Magnets

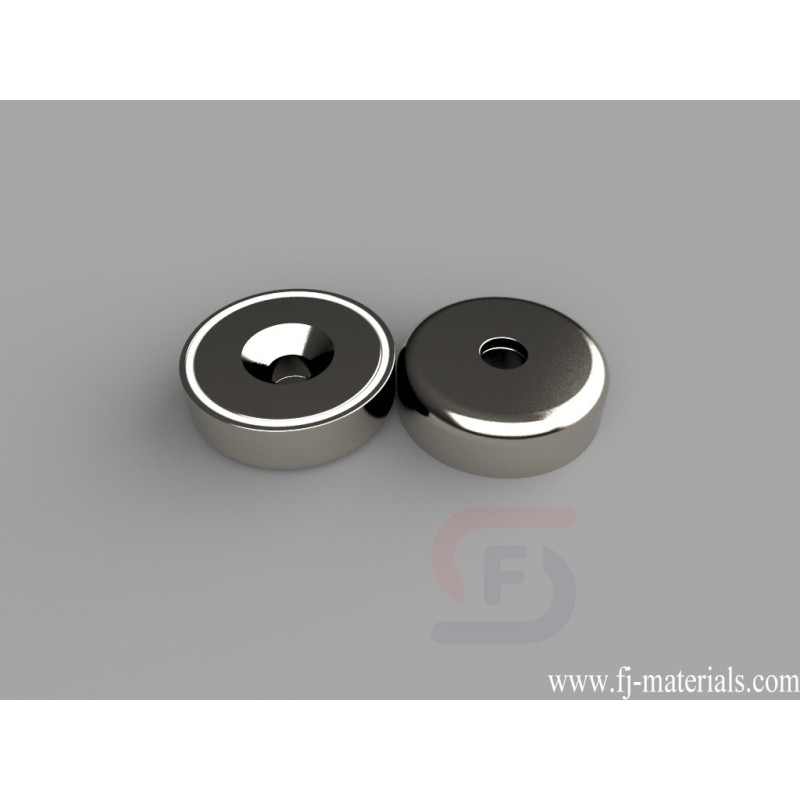

MM-A-32 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=32mm (1.26" ) d1=5.5mm (0.22" ) (Sized for M5 screw) d2=10mm (0.39" ) (Tapered countersunk hole) h=8mm (0.32" ), Axial magnetized. Pull force is approximately 55.1 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-A-32 Metric Mounting Magnets with high quality at competitive price.
MM-A-32 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=32mm (1.26" ) d1=5.5mm (0.22" ) (Sized for M5 screw) d2=10mm (0.39" ) (Tapered countersunk hole) h=8mm (0.32" ), Axial magnetized. Pull force is approximately 55.1 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-A-32
Data sheet
- Item Number
- MM-A-32
- Material
- NdFeB
- Grade
- N38
- Size
- D is 32mm (1.26" ) d1 is 5.5mm (0.22" ) (Sized for M5 screw) d2 is 10mm (0.39" ) (Tapered countersunk hole) h is 8mm (0.32" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.41 oz. (40.0 g)
- Pull Force
- 55.1 lbs
MM-A-32 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=32mm (1.26" ) d1=5.5mm (0.22" ) (Sized for M5 screw) d2=10mm (0.39" ) (Tapered countersunk hole) h=8mm (0.32" ), Axial magnetized. Pull force is approximately 55.1 lbs.
