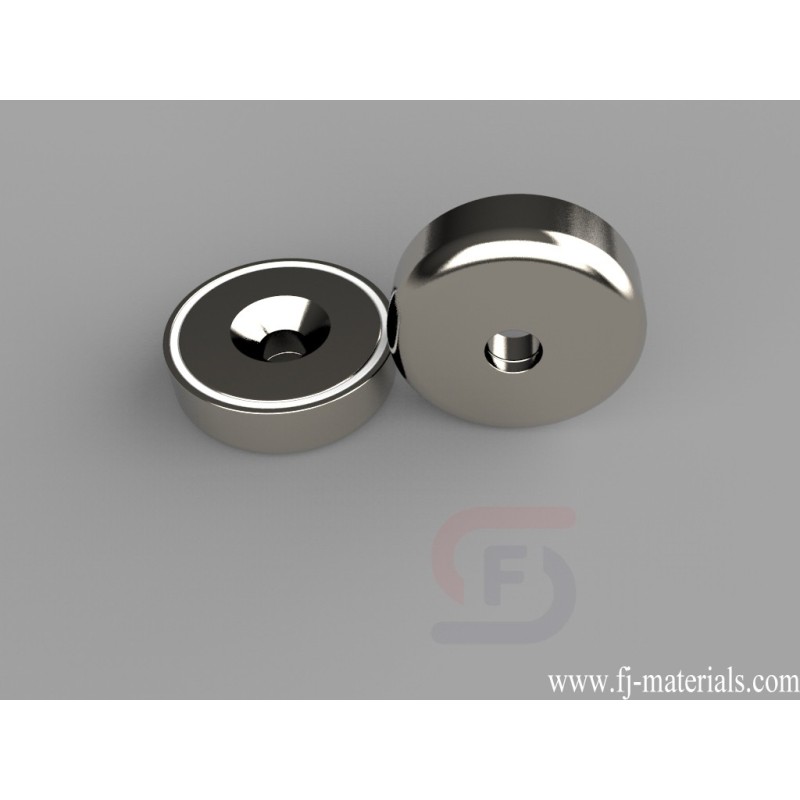

| MM-A-36 Metric Mounting Magnets

MM-A-36 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=36mm (1.42" ) d1=6.5mm (0.26" ) (Sized for M6 screw) d2=12mm (0.47" ) (Tapered countersunk hole) h=8mm (0.31" ), Axial magnetized. Pull force is approximately 63.9 lbs.

Yiwu Fenjiao E-commerce Firm supply MM-A-36 Metric Mounting Magnets with high quality at competitive price.

MM-A-36 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=36mm (1.42" ) d1=6.5mm (0.26" ) (Sized for M6 screw) d2=12mm (0.47" ) (Tapered countersunk hole) h=8mm (0.31" ), Axial magnetized. Pull force is approximately 63.9 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MM-A-36

Data sheet

Item Number
MM-A-36
Material
NdFeB
Grade
N38
Size
D is 36mm (1.42" ) d1 is 6.5mm (0.26" ) (Sized for M6 screw) d2 is 12mm (0.47" ) (Tapered countersunk hole) h is 8mm (0.31" )
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
1.71 oz. (48.5 g)
Pull Force
63.9 lbs
