| MM-A-42 Metric Mounting Magnets

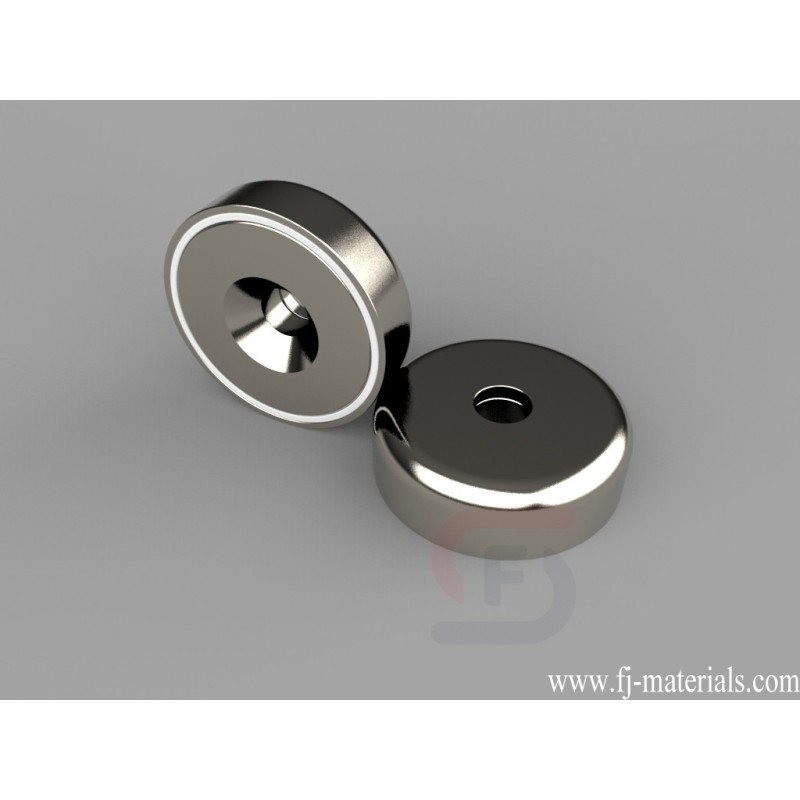

MM-A-42 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=42mm (1.65" ) d1=6.5mm (0.26" ) (Sized for M6 screw) d2=12.5mm (0.49" ) (Tapered countersunk hole) h=9mm (0.35" ), Axial magnetized. Pull force is approximately 81.6 lbs.

Yiwu Fenjiao E-commerce Firm supply MM-A-42 Metric Mounting Magnets with high quality at competitive price.

MM-A-42 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=42mm (1.65" ) d1=6.5mm (0.26" ) (Sized for M6 screw) d2=12.5mm (0.49" ) (Tapered countersunk hole) h=9mm (0.35" ), Axial magnetized. Pull force is approximately 81.6 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MM-A-42

Data sheet

Item Number
MM-A-42
Material
NdFeB
Grade
N38
Size
D is 42mm (1.65" ) d1 is 6.5mm (0.26" ) (Sized for M6 screw) d2 is 12.5mm (0.49" ) (Tapered countersunk hole) h is 9mm (0.35" )
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
2.75 oz. (78.0 g)
Pull Force
81.6 lbs
