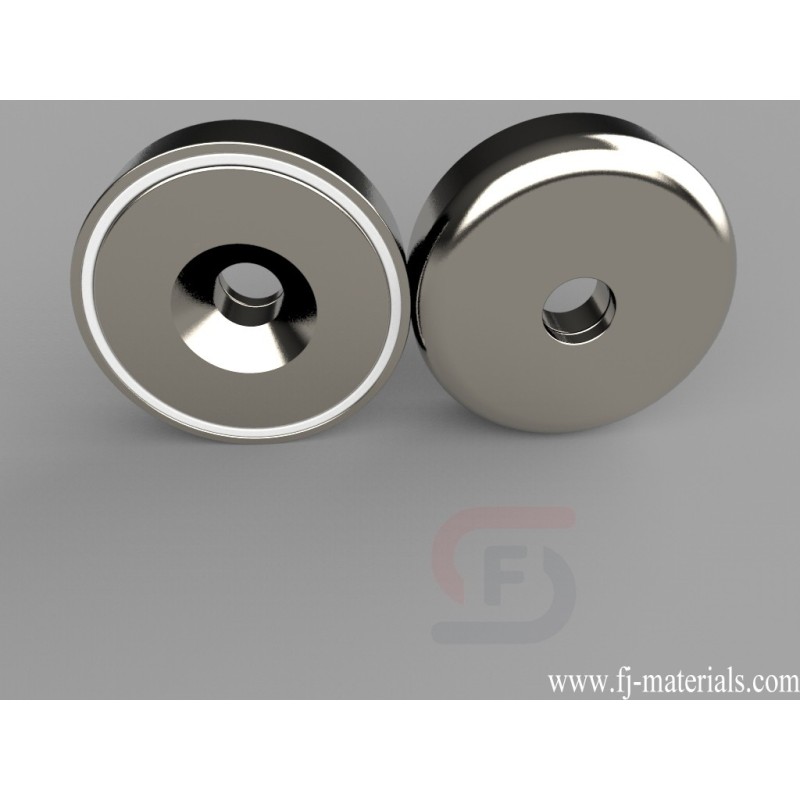

| MM-A-75 Metric Mounting Magnets
MM-A-75 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=75mm (2.95" ) d1=10.5mm (0.41" ) (Sized for M10 screw) d2=19mm (0.75" ) (Tapered countersunk hole) h=18mm (0.71" ), Axial magnetized. Pull force is approximately 357 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-A-75 Metric Mounting Magnets with high quality at competitive price.
MM-A-75 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=75mm (2.95" ) d1=10.5mm (0.41" ) (Sized for M10 screw) d2=19mm (0.75" ) (Tapered countersunk hole) h=18mm (0.71" ), Axial magnetized. Pull force is approximately 357 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-A-75
Data sheet
- Item Number
- MM-A-75
- Material
- NdFeB
- Grade
- N38
- Size
- D is 75mm (2.95" ) d1 is 10.5mm (0.41" ) (Sized for M10 screw) d2 is 19mm (0.75" ) (Tapered countersunk hole) h is 18mm (0.71" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 17.4 oz. (493 g)
- Pull Force
- 357 lbs
MM-A-75 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=75mm (2.95" ) d1=10.5mm (0.41" ) (Sized for M10 screw) d2=19mm (0.75" ) (Tapered countersunk hole) h=18mm (0.71" ), Axial magnetized. Pull force is approximately 357 lbs.
