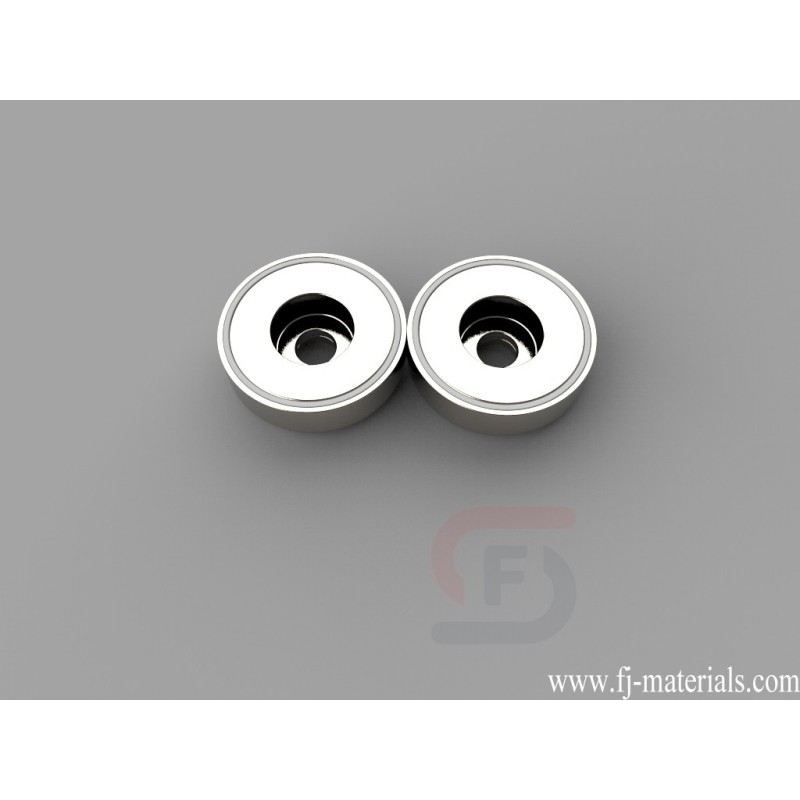

| MM-B-16 Metric Mounting Magnets
MM-B-16 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=16mm (0.63" ) d1=3.5mm (0.14" ) (Sized for M3 screw) d2=6.5mm (0.26" ) (Straight counterbored hole) h=5mm (0.20" ), Axial magnetized. Pull force is approximately 8.80 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-B-16 Metric Mounting Magnets with high quality at competitive price.
MM-B-16 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=16mm (0.63" ) d1=3.5mm (0.14" ) (Sized for M3 screw) d2=6.5mm (0.26" ) (Straight counterbored hole) h=5mm (0.20" ), Axial magnetized. Pull force is approximately 8.80 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-B-16
Data sheet
- Item Number
- MM-B-16
- Material
- NdFeB
- Grade
- N38
- Size
- D is 16mm (0.63" ) d1 is 3.5mm (0.14" ) (Sized for M3 screw) d2 is 6.5mm (0.26" ) (Straight counterbored hole) h is 5mm (0.20" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.20 oz. (5.67 g)
- Pull Force
- 8.80 lbs
MM-B-16 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=16mm (0.63" ) d1=3.5mm (0.14" ) (Sized for M3 screw) d2=6.5mm (0.26" ) (Straight counterbored hole) h=5mm (0.20" ), Axial magnetized. Pull force is approximately 8.80 lbs.
