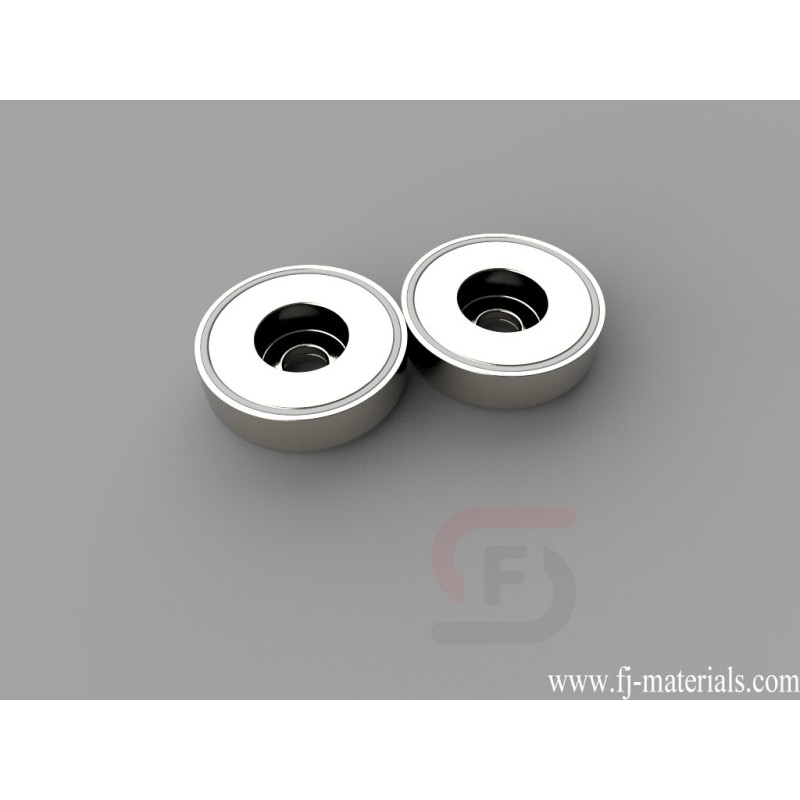

| MM-B-20 Metric Mounting Magnets
MM-B-20 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=20mm (0.79" ) d1=4.5mm (0.18" ) (Sized for M4 screw) d2=8.5mm (0.33" ) (Straight counterbored hole) h=7mm (0.28" ), Axial magnetized. Pull force is approximately 13.2 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-B-20 Metric Mounting Magnets with high quality at competitive price.
MM-B-20 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=20mm (0.79" ) d1=4.5mm (0.18" ) (Sized for M4 screw) d2=8.5mm (0.33" ) (Straight counterbored hole) h=7mm (0.28" ), Axial magnetized. Pull force is approximately 13.2 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-B-20
Data sheet
- Item Number
- MM-B-20
- Material
- NdFeB
- Grade
- N38
- Size
- D is 20mm (0.79" ) d1 is 4.5mm (0.18" ) (Sized for M4 screw) d2 is 8.5mm (0.33" ) (Straight counterbored hole) h is 7mm (0.28" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.42 oz. (11.9 g)
- Pull Force
- 13.2 lbs
MM-B-20 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=20mm (0.79" ) d1=4.5mm (0.18" ) (Sized for M4 screw) d2=8.5mm (0.33" ) (Straight counterbored hole) h=7mm (0.28" ), Axial magnetized. Pull force is approximately 13.2 lbs.
