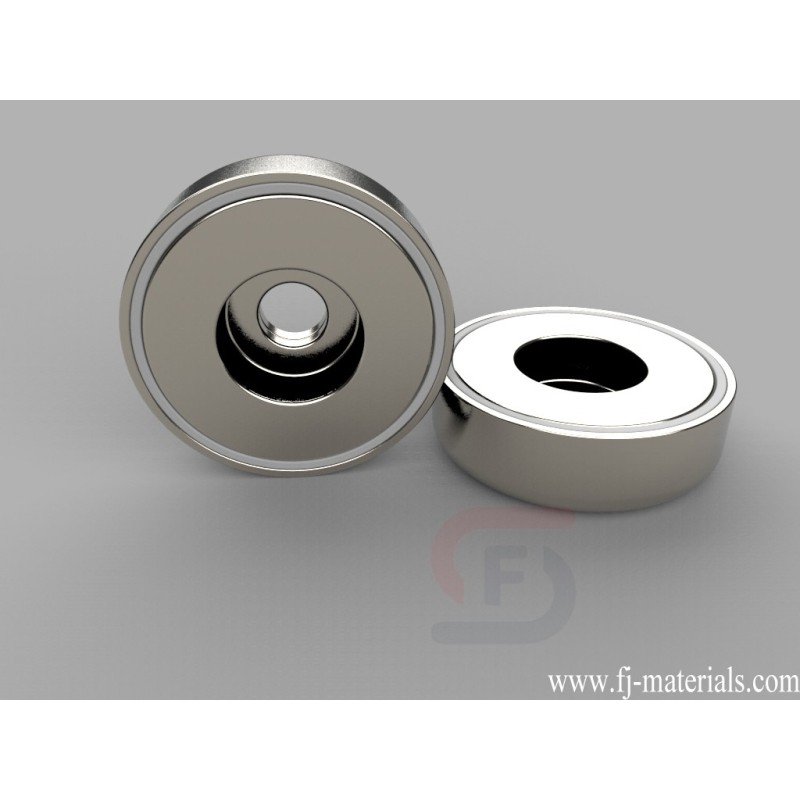

| MM-B-42 Metric Mounting Magnets
MM-B-42 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=42mm (1.65" ) d1=6.5mm (0.26" ) (Sized for M6 screw) d2=12.5mm (0.49" ) (Straight counterbored hole) h=9mm (0.35" ), Axial magnetized. Pull force is approximately 70.5 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-B-42 Metric Mounting Magnets with high quality at competitive price.
MM-B-42 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=42mm (1.65" ) d1=6.5mm (0.26" ) (Sized for M6 screw) d2=12.5mm (0.49" ) (Straight counterbored hole) h=9mm (0.35" ), Axial magnetized. Pull force is approximately 70.5 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-B-42
Data sheet
- Item Number
- MM-B-42
- Material
- NdFeB
- Grade
- N38
- Size
- D is 42mm (1.65" ) d1 is 6.5mm (0.26" ) (Sized for M6 screw) d2 is 12.5mm (0.49" ) (Straight counterbored hole) h is 9mm (0.35" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 2.71 oz. (76.8 g)
- Pull Force
- 70.5 lbs
MM-B-42 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=42mm (1.65" ) d1=6.5mm (0.26" ) (Sized for M6 screw) d2=12.5mm (0.49" ) (Straight counterbored hole) h=9mm (0.35" ), Axial magnetized. Pull force is approximately 70.5 lbs.
