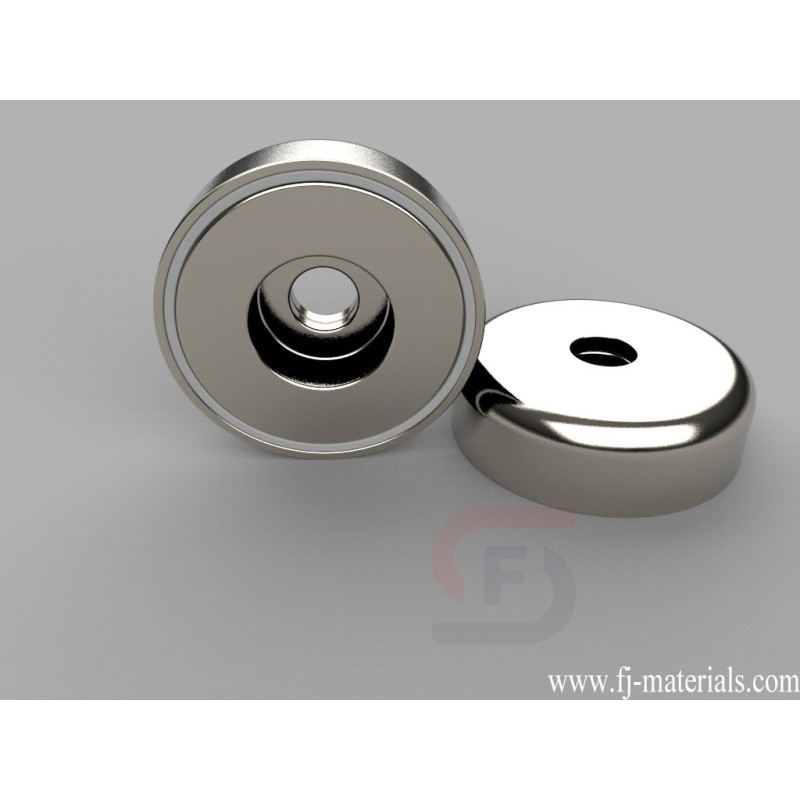

| MM-B-48 Metric Mounting Magnets
MM-B-48 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=48mm (1.89" ) d1=8.5mm (0.33" ) (Sized for M8 screw) d2=15mm (0.59" ) (Straight counterbored hole) h=11mm (0.43" ), Axial magnetized. Pull force is approximately 139.0 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-B-48 Metric Mounting Magnets with high quality at competitive price.
MM-B-48 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=48mm (1.89" ) d1=8.5mm (0.33" ) (Sized for M8 screw) d2=15mm (0.59" ) (Straight counterbored hole) h=11mm (0.43" ), Axial magnetized. Pull force is approximately 139.0 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-B-48
Data sheet
- Item Number
- MM-B-48
- Material
- NdFeB
- Grade
- N38
- Size
- D is 48mm (1.89" ) d1 is 8.5mm (0.33" ) (Sized for M8 screw) d2 is 15mm (0.59" ) (Straight counterbored hole) h is 11mm (0.43" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 3.93 oz. (111 g)
- Pull Force
- 139.0 lbs
MM-B-48 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=48mm (1.89" ) d1=8.5mm (0.33" ) (Sized for M8 screw) d2=15mm (0.59" ) (Straight counterbored hole) h=11mm (0.43" ), Axial magnetized. Pull force is approximately 139.0 lbs.
