| MM-B-60 Metric Mounting Magnets

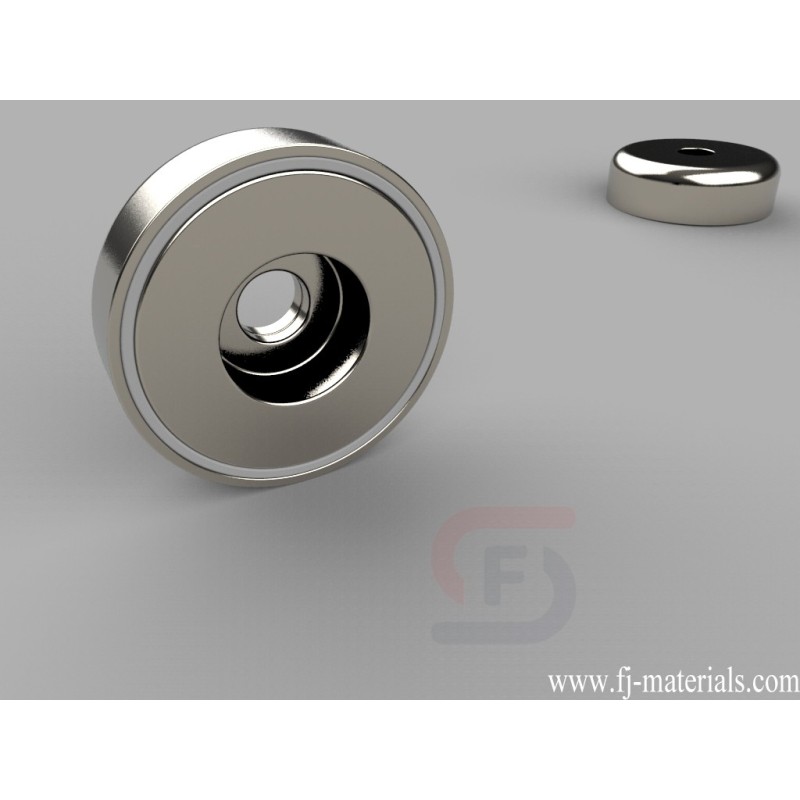

MM-B-60 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=60mm (2.36" ) d1=8.5mm (0.33" ) (Sized for M8 screw) d2=16.5mm (0.65" ) (Straight counterbored hole) h=15mm (0.59" ), Axial magnetized. Pull force is approximately 209.4 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-B-60 Metric Mounting Magnets with high quality at competitive price.
MM-B-60 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=60mm (2.36" ) d1=8.5mm (0.33" ) (Sized for M8 screw) d2=16.5mm (0.65" ) (Straight counterbored hole) h=15mm (0.59" ), Axial magnetized. Pull force is approximately 209.4 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-B-60
Data sheet
- Item Number
- MM-B-60
- Material
- NdFeB
- Grade
- N38
- Size
- D is 60mm (2.36" ) d1 is 8.5mm (0.33" ) (Sized for M8 screw) d2 is 16.5mm (0.65" ) (Straight counterbored hole) h is 15mm (0.59" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 8.50 oz. (241 g)
- Pull Force
- 209.4 lbs
MM-B-60 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=60mm (2.36" ) d1=8.5mm (0.33" ) (Sized for M8 screw) d2=16.5mm (0.65" ) (Straight counterbored hole) h=15mm (0.59" ), Axial magnetized. Pull force is approximately 209.4 lbs.
