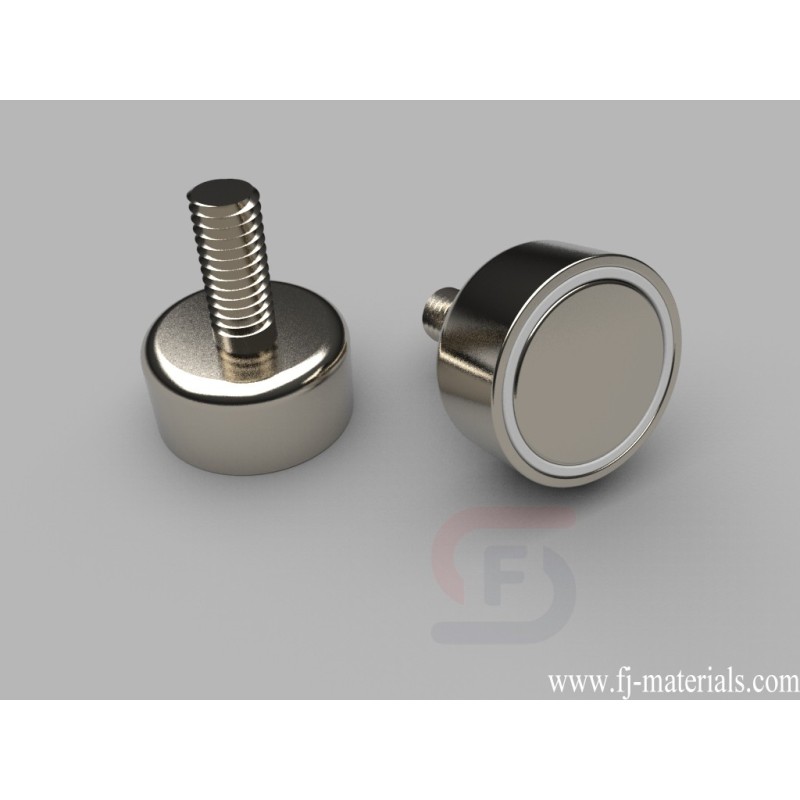

| MM-C-10 Metric Mounting Magnets
MM-C-10 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=10mm (0.39" ) M=3mm (0.12" ) (M3 Coarse Male threaded stud) H=12mm (0.47" ) h=5mm (0.20" ), Axial magnetized. Pull force is approximately 4.9 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-C-10 Metric Mounting Magnets with high quality at competitive price.
MM-C-10 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=10mm (0.39" ) M=3mm (0.12" ) (M3 Coarse Male threaded stud) H=12mm (0.47" ) h=5mm (0.20" ), Axial magnetized. Pull force is approximately 4.9 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-C-10
Data sheet
- Item Number
- MM-C-10
- Material
- NdFeB
- Grade
- N38
- Size
- D is 10mm (0.39" ) M is 3mm (0.12" ) (M3 Coarse Male threaded stud) H is 12mm (0.47" ) h is 5mm (0.20" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.12 oz. (3.40 g)
- Pull Force
- 4.9 lbs
MM-C-10 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=10mm (0.39" ) M=3mm (0.12" ) (M3 Coarse Male threaded stud) H=12mm (0.47" ) h=5mm (0.20" ), Axial magnetized. Pull force is approximately 4.9 lbs.
