| MM-C-12 Metric Mounting Magnets

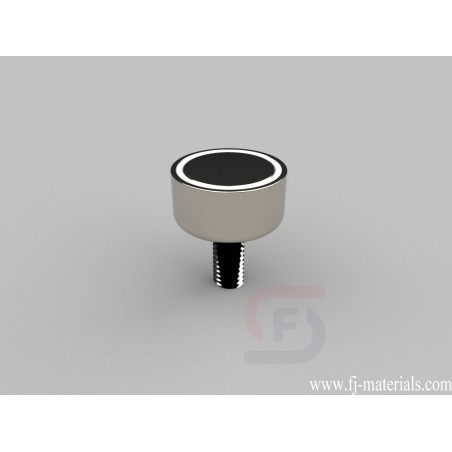

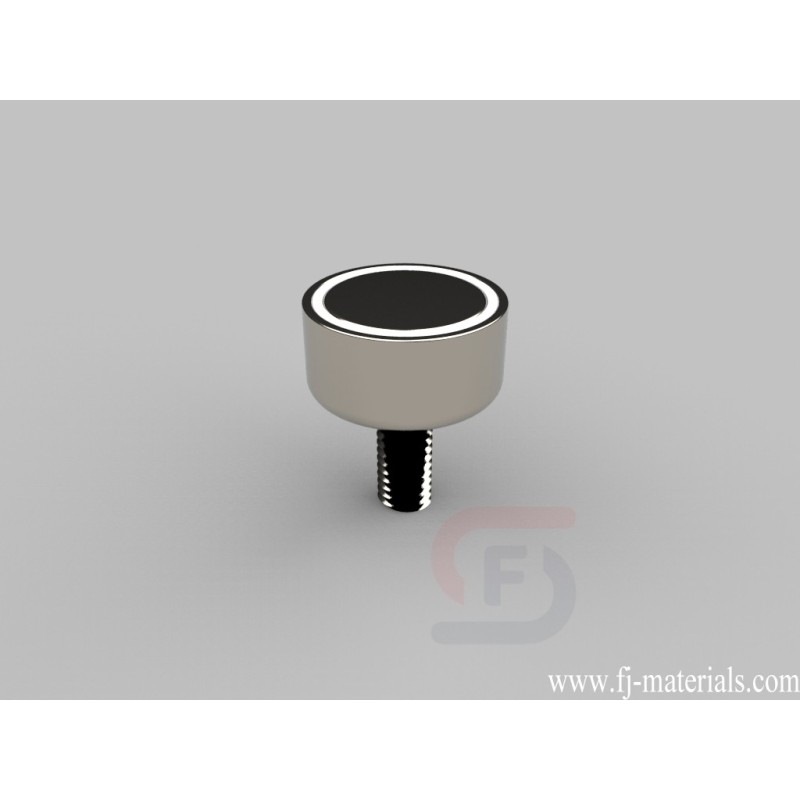

MM-C-12 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=12mm (0.47" ) M=3mm (0.12" ) (M3 Coarse Male threaded stud) H=13mm (0.51" ) h=5mm (0.20" ), Axial magnetized. Pull force is approximately 7.0 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-C-12 Metric Mounting Magnets with high quality at competitive price.
MM-C-12 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=12mm (0.47" ) M=3mm (0.12" ) (M3 Coarse Male threaded stud) H=13mm (0.51" ) h=5mm (0.20" ), Axial magnetized. Pull force is approximately 7.0 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-C-12
Data sheet
- Item Number
- MM-C-12
- Material
- NdFeB
- Grade
- N38
- Size
- D is 12mm (0.47" ) M is 3mm (0.12" ) (M3 Coarse Male threaded stud) H is 13mm (0.51" ) h is 5mm (0.20" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.13 oz. (3.69 g)
- Pull Force
- 7.0 lbs
MM-C-12 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=12mm (0.47" ) M=3mm (0.12" ) (M3 Coarse Male threaded stud) H=13mm (0.51" ) h=5mm (0.20" ), Axial magnetized. Pull force is approximately 7.0 lbs.
