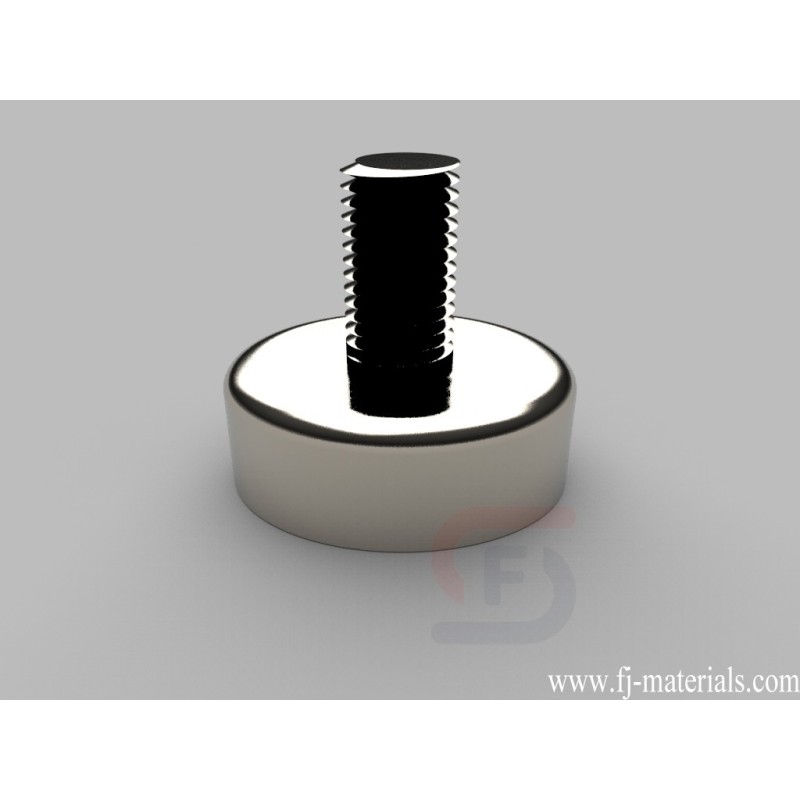

| MM-C-25 Metric Mounting Magnets
MM-C-25 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=25mm (0.98" ) M=5mm (0.20" ) (M5 Coarse Male threaded stud) H=17mm (0.67" ) h=8mm (0.32" ), Axial magnetized. Pull force is approximately 48.5 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-C-25 Metric Mounting Magnets with high quality at competitive price.
MM-C-25 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=25mm (0.98" ) M=5mm (0.20" ) (M5 Coarse Male threaded stud) H=17mm (0.67" ) h=8mm (0.32" ), Axial magnetized. Pull force is approximately 48.5 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-C-25
Data sheet
- Item Number
- MM-C-25
- Material
- NdFeB
- Grade
- N38
- Size
- D is 25mm (0.98" ) M is 5mm (0.20" ) (M5 Coarse Male threaded stud) H is 17mm (0.67" ) h is 8mm (0.32" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.92 oz. (26.1 g)
- Pull Force
- 48.5 lbs
MM-C-25 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=25mm (0.98" ) M=5mm (0.20" ) (M5 Coarse Male threaded stud) H=17mm (0.67" ) h=8mm (0.32" ), Axial magnetized. Pull force is approximately 48.5 lbs.
