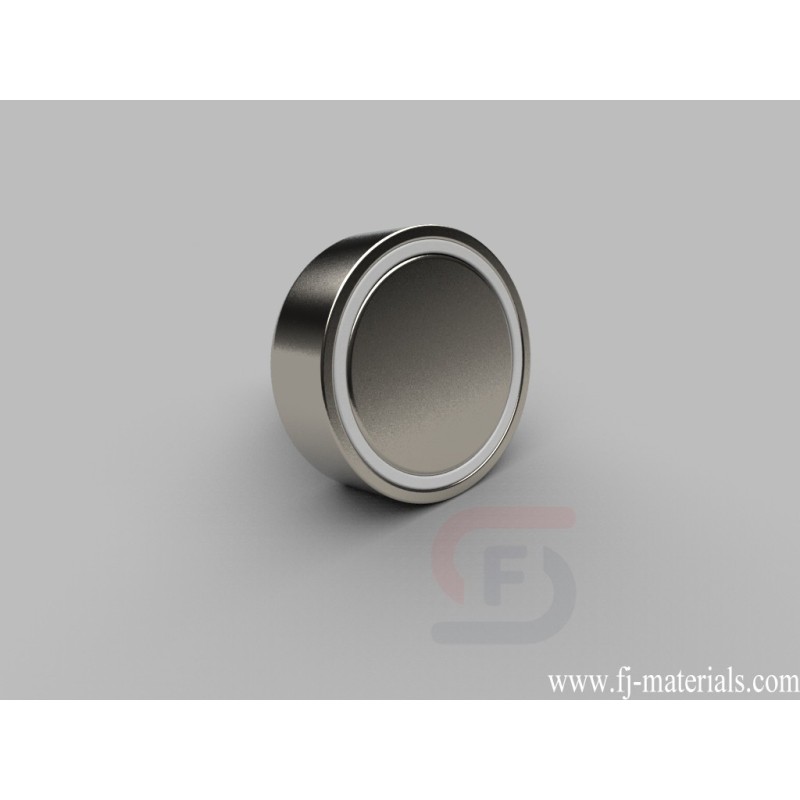

| MM-C-32 Metric Mounting Magnets

MM-C-32 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=32mm (1.26" ) M=6mm (0.24" ) (M6 Coarse Male threaded stud) H=18mm (0.71" ) h=8mm (0.32" ), Axial magnetized. Pull force is approximately 75.0 lbs.

Yiwu Fenjiao E-commerce Firm supply MM-C-32 Metric Mounting Magnets with high quality at competitive price.

MM-C-32 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=32mm (1.26" ) M=6mm (0.24" ) (M6 Coarse Male threaded stud) H=18mm (0.71" ) h=8mm (0.32" ), Axial magnetized. Pull force is approximately 75.0 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MM-C-32

Data sheet

Item Number
MM-C-32
Material
NdFeB
Grade
N38
Size
D is 32mm (1.26" ) M is 6mm (0.24" ) (M6 Coarse Male threaded stud) H is 18mm (0.71" ) h is 8mm (0.32" )
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
1.53 oz. (43.4 g)
Pull Force
75.0 lbs
